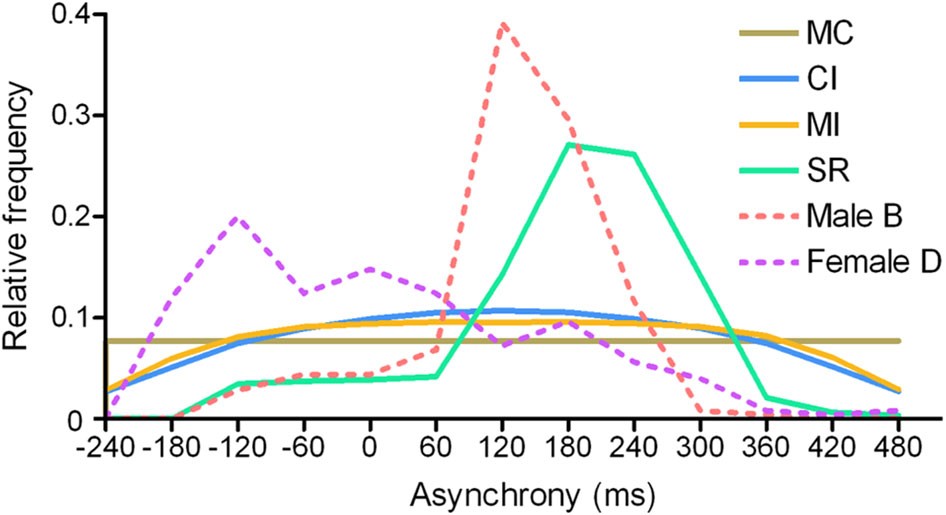

Figure 3
From: Rhythmic synchronization tapping to an audio–visual metronome in budgerigars
Asynchrony distribution in simulated and real birds.
The relative frequency distribution of asynchrony in the MC, CI, MI and SR simulations and two real subjects (Male B and Female D) under the 1,200-ms-IOI condition is shown (bin width, 60 ms). The figure shows that the real birds directed their pecks at a certain point and the phase relationship remained constant although they could have accomplished the tasks using the MC, CI and MI strategies.
