Figure 1

From: Dual evidence of surface Dirac states in thin cylindrical topological insulator Bi2Te3 nanowires

Figure 1

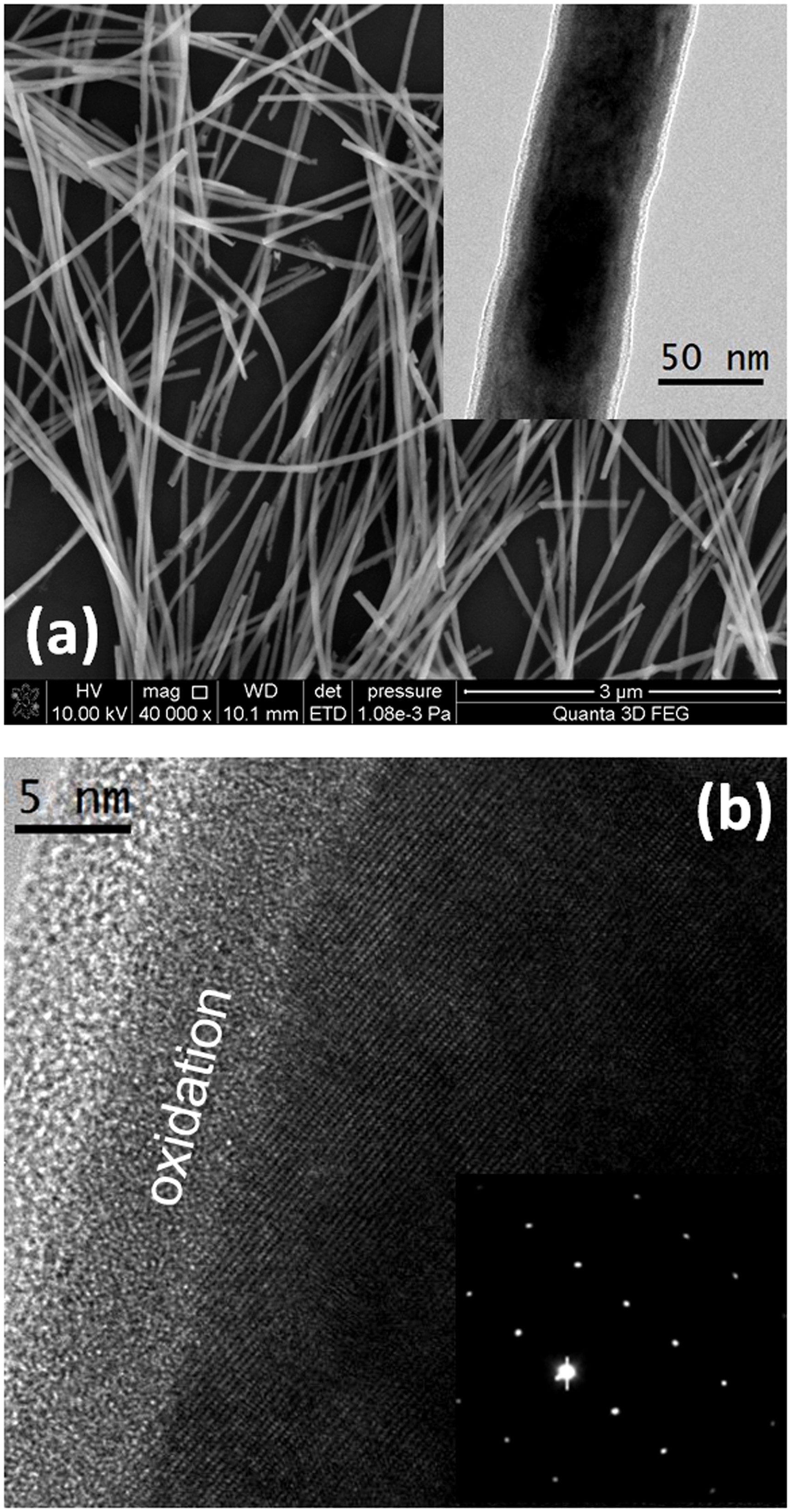

Panel (a) and the inset, respectively, show the low magnification SEM and TEM images of the Bi2Te3 nanowires.

The majority of nanowires display a length of 8–15 μm and a diameter of 40–50 nm. High-resolution TEM and the selected area electron diffraction pattern on a randomly selected nanowire, as shown in panel (b) and the inset, revealed single-crystal morphology. An oxidation layer of approximately ~5.0 nm is visible on the surface.
