Figure 4
From: Homologous recombination-mediated gene targeting in the liverwort Marchantia polymorpha L.

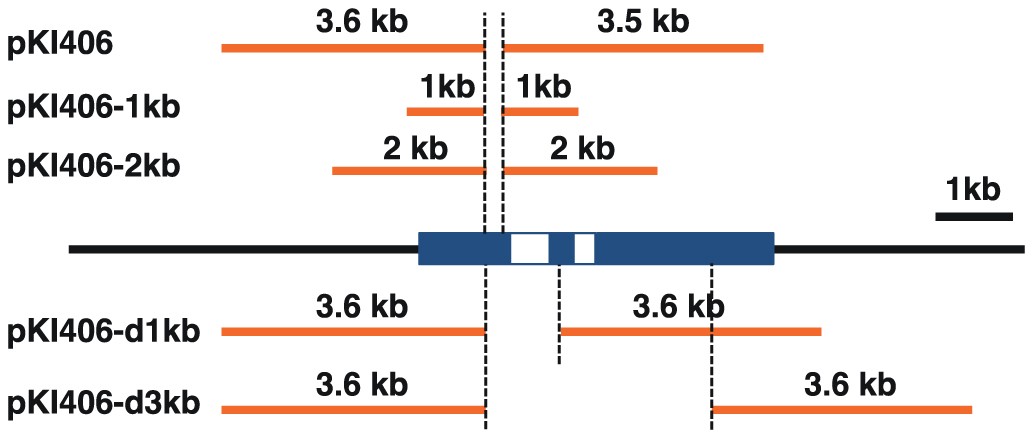

Constructs for optimization of gene-targeting in M. polymorpha.
The exons and introns of the wild-type NOP1 gene are represented by blue and open boxes, respectively. Positions and length of homologous arms cloned in the binary vectors are indicated as orange bars.
