Figure 1 | Scientific Reports

Figure 1

From: Quantum anti-Zeno effect without wave function reduction

Figure 1

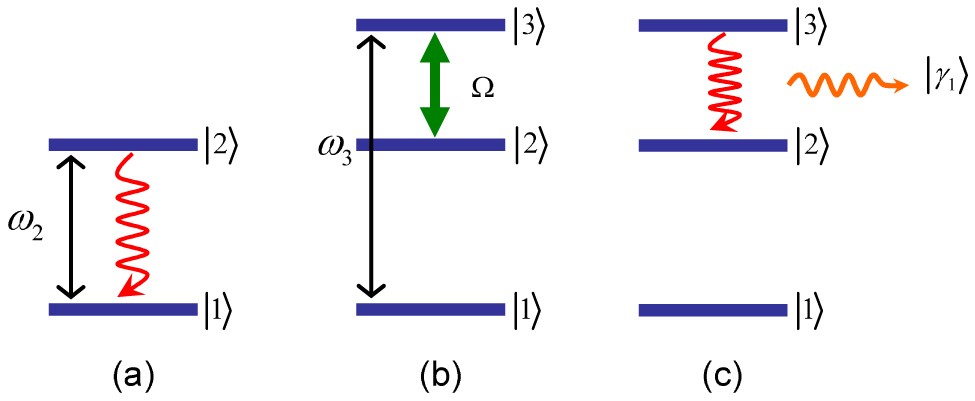

Energy level diagram for the three processes considered here: (a) the spontaneous decay from the excited state |2〉 to the ground state |1〉, (b) a coherent transition with Rabi frequency Ω between |2〉 and the auxiliary state |3〉 by laser pumping and (c) a fast spontaneous decay from |3〉 to |2〉 with a photon emitted in |γ1〉.

Here, the eigenenergies for the excited state and the auxiliary state are ω2 and ω3, respectively.
