Figure 2
From: Plasmon based biosensor for distinguishing different peptides mutation states

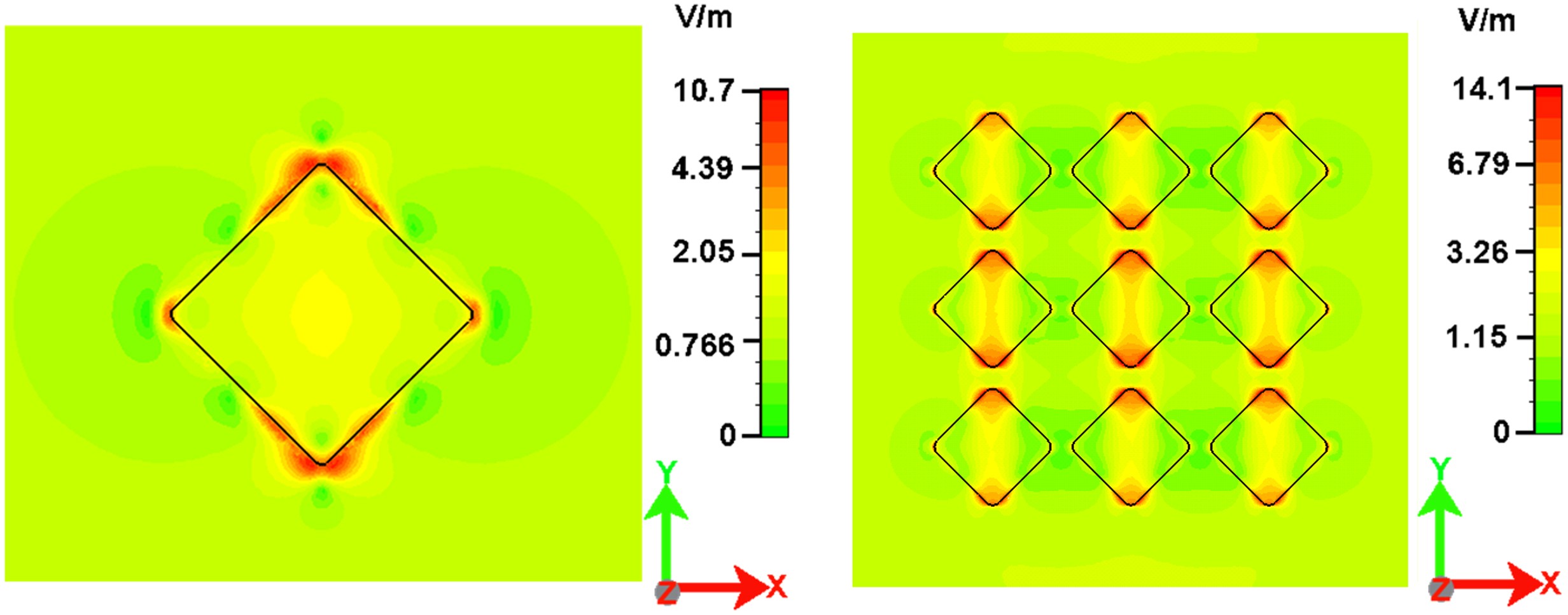

Electric field distribution image for nanocuboids matrix 1 × 1(a) and 3 × 3(b) SERS device.
The corners of the structure are modified to make the design more realistic. The light is x-polarized. Inter particle gap between two nanocuboids is 20 nm.
