Figure 4
From: Plasmon based biosensor for distinguishing different peptides mutation states

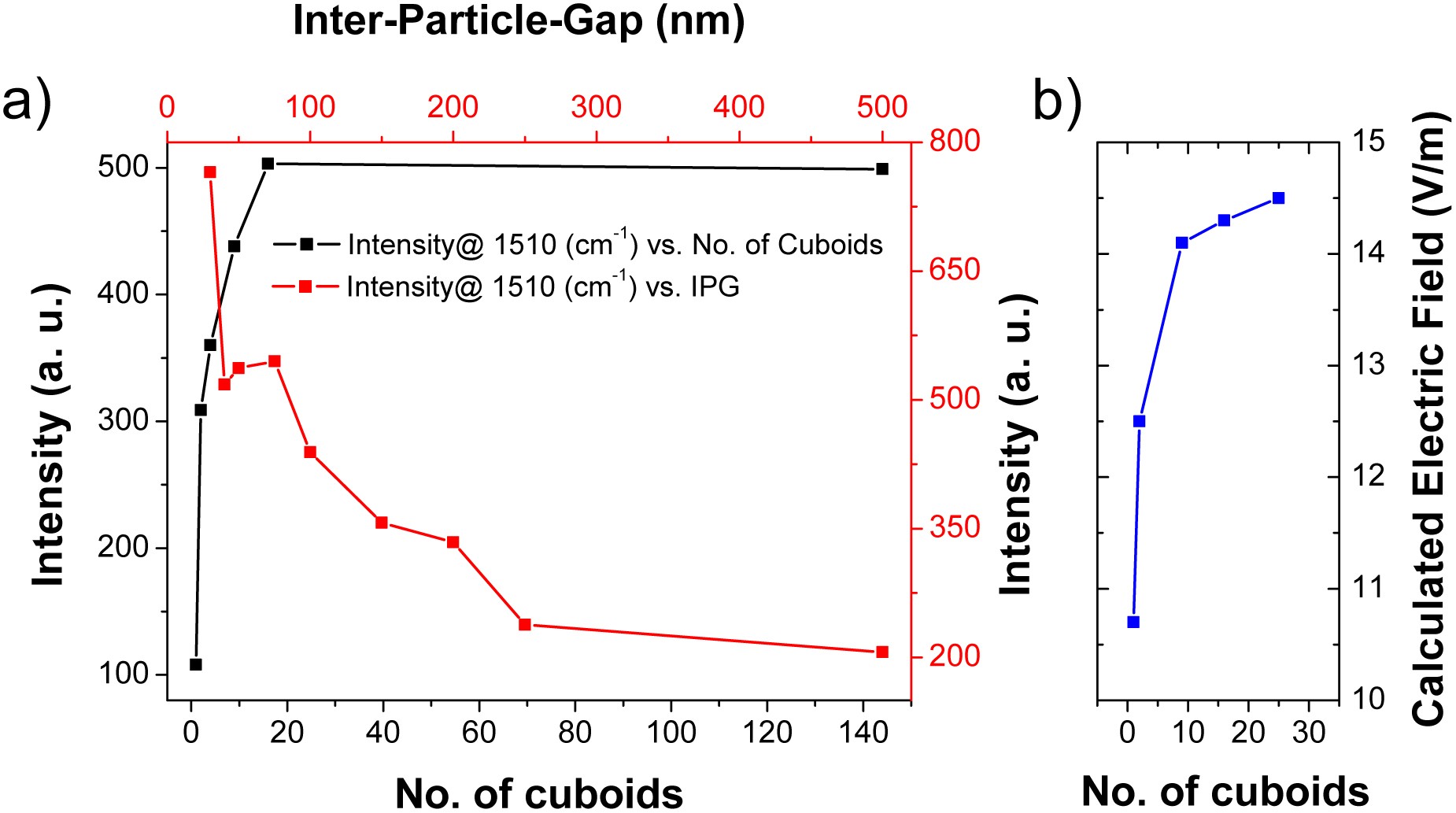

(a) SERS intensity of R6G characteristic band@1510 cm−1 by varying the array size (black line with square symbol ‘
’) and by varying IPG (red line with square symbol ‘
’); (b) plot of calculated electric field (V/m) by varying the cuboids matrix.
