Figure 4
From: Stochastic effects as a force to increase the complexity of signaling networks

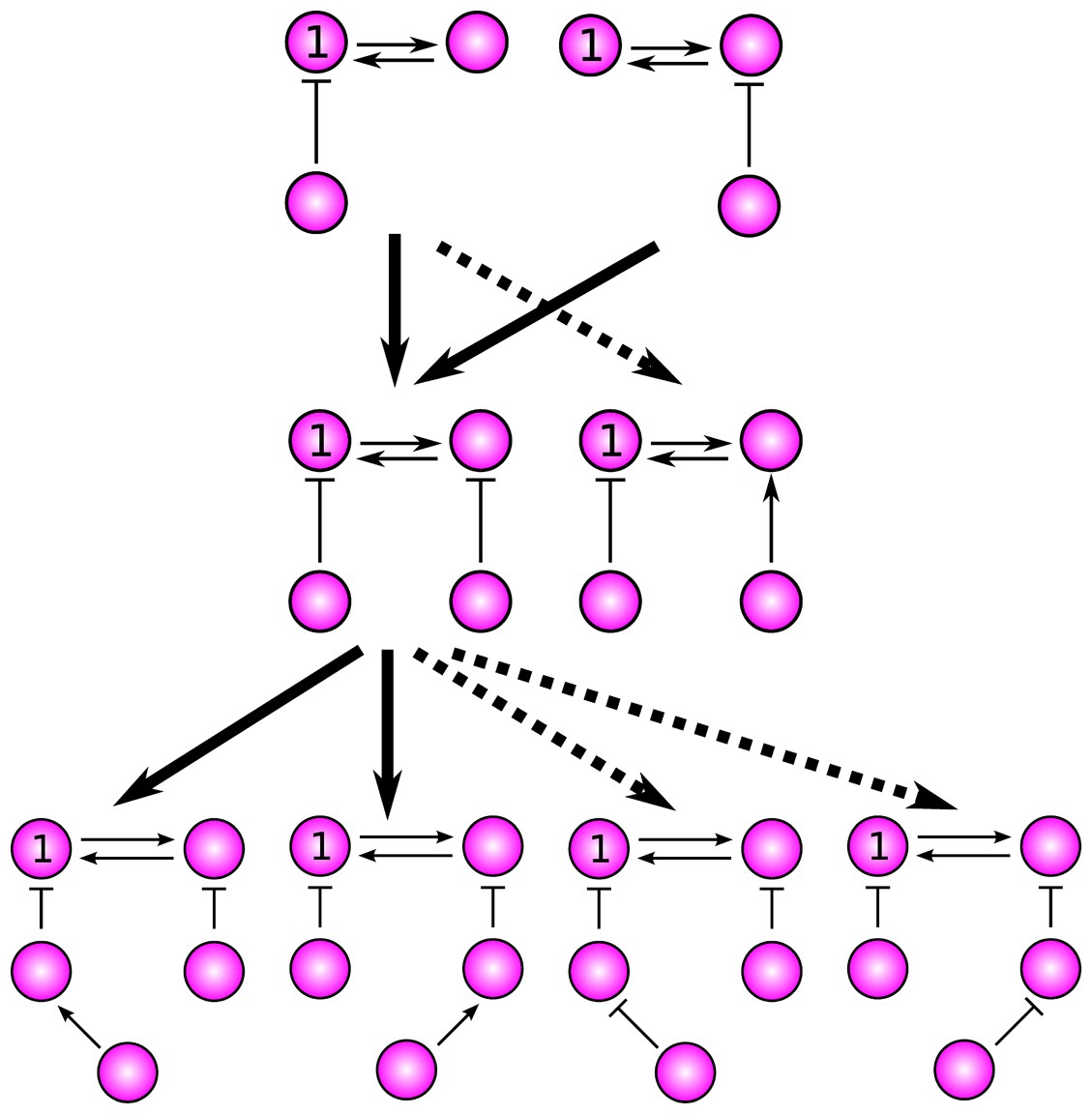

Pathways to increase the deviation level from three-node to five-node topologies.
This shows potential trajectories that increase the deviation level with an increase in the network size. The solid arrows that connect the topologies indicate a substantial amplification in the deviation level, while the dashed arrows indicate neutral transitions with no (substantial) changes in the deviation level.
