Figure 7

From: Mining large-scale response networks reveals ‘topmost activities’ in Mycobacterium tuberculosis infection

Figure 7

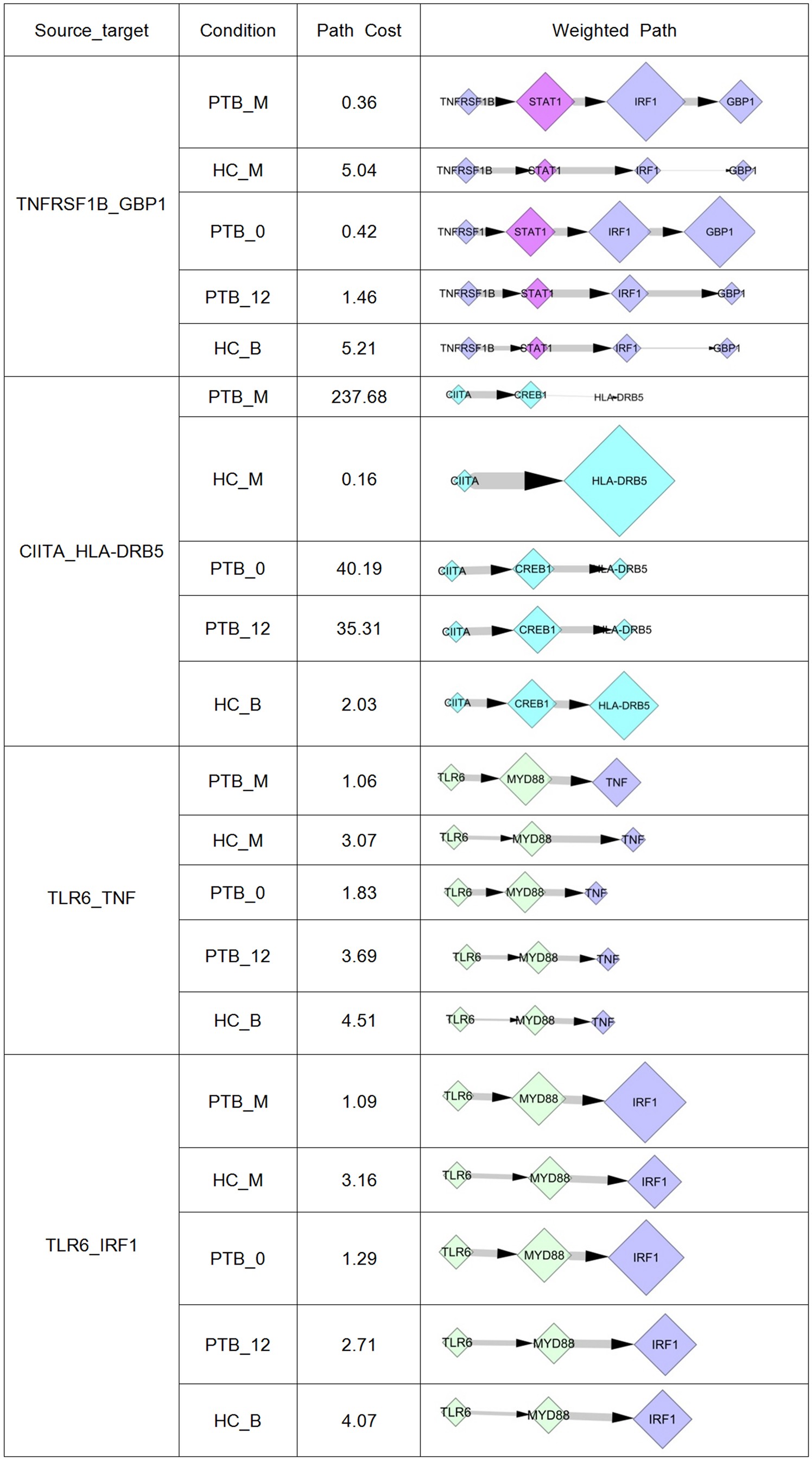

Path activities in different conditions.

Example paths from a given source to target show variable Path Costs and thus variable activities in different conditions. The variation in activities are demonstrated by showing the differences in weights of nodes and edges constituting the path. Node sizes correspond to node weights, while edge thickness reflects the interaction strength of the edge in a given condition. Nodes are coloured according to the modules they belong to.
