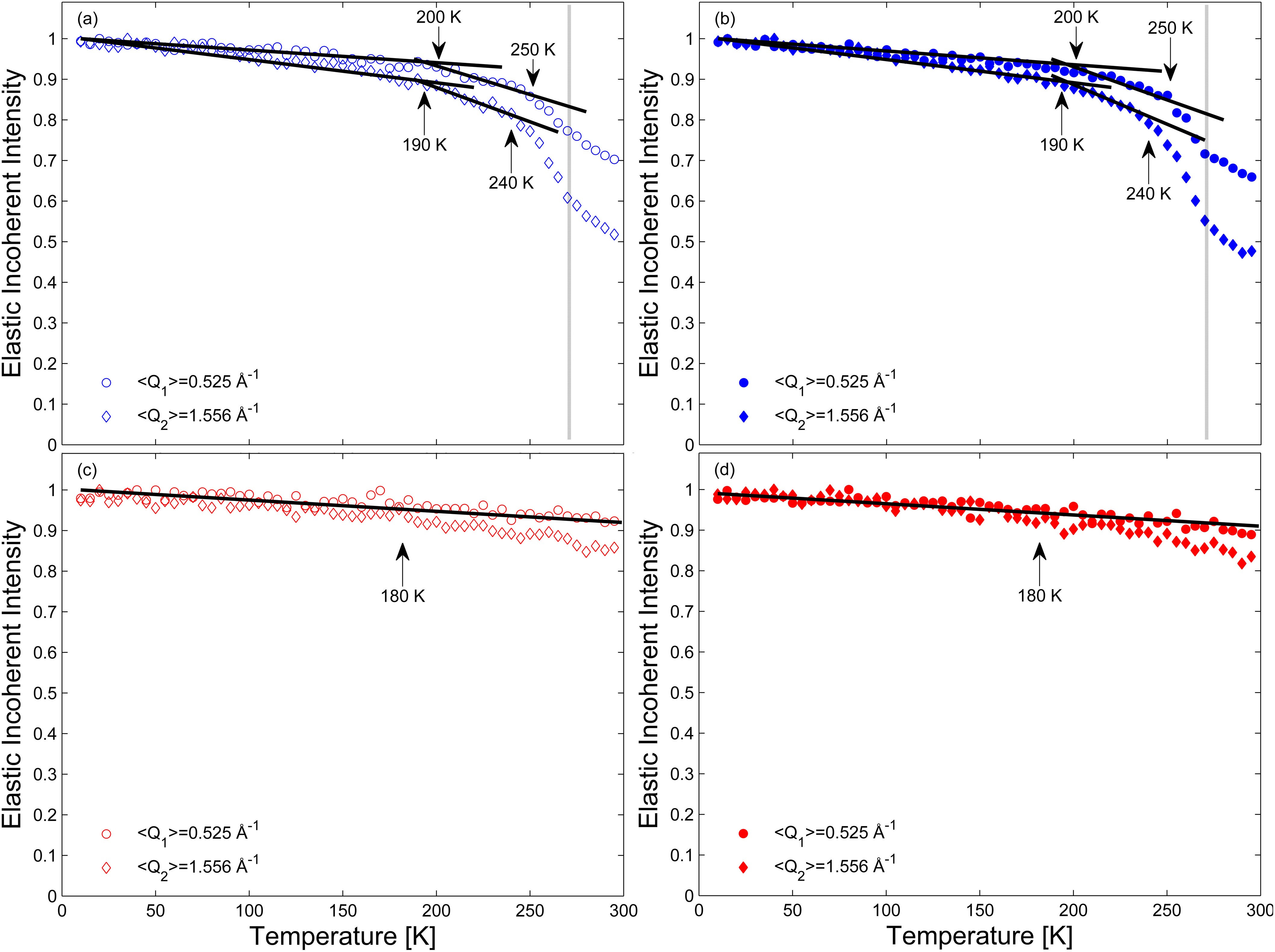

Figure 1
From: Nano-scale hydrogen-bond network improves the durability of greener cements
A comparison between the normalized intensity S(Q, 0)(T)/S(Q,0)(T = 5 K).
(TOP) for the wet and (BOTTOM) dried samples; the arrows mark the temperatures at which an-harmonic onsets occur for OPC (open symbols) and SCSA (full symbols).
