Figure 3
From: Atomic Scale Verification of Oxide-Ion Vacancy Distribution near a Single Grain Boundary in YSZ

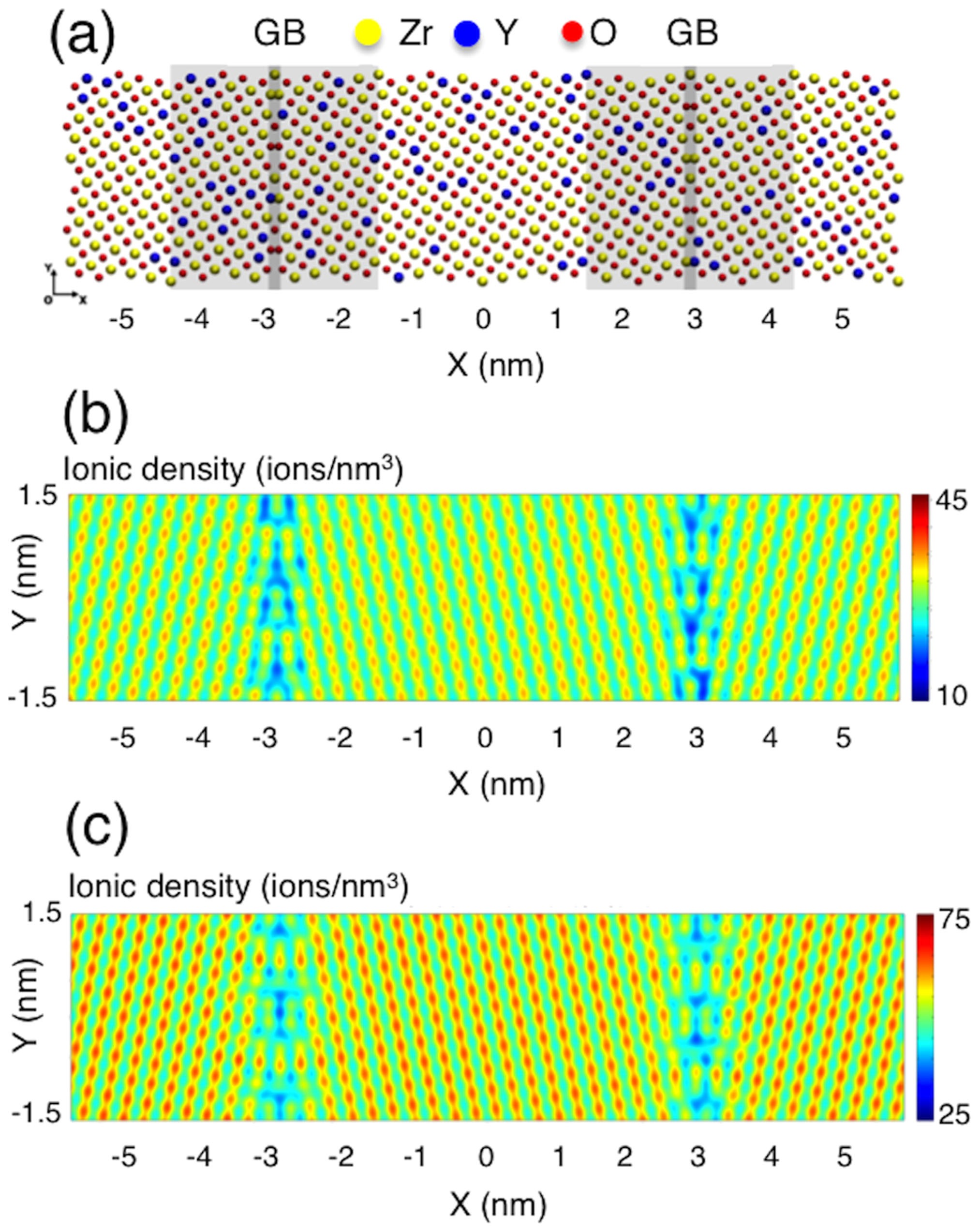

Hybrid MC-MD simulation results for, (a) a simulation cell with two Σ13(510)/[001] GBs, (b) 2-D distribution of cations and (c) 2-D distribution of oxide-ions.
