Figure 5
From: Tuning inter-dot tunnel coupling of an etched graphene double quantum dot by adjacent metal gates

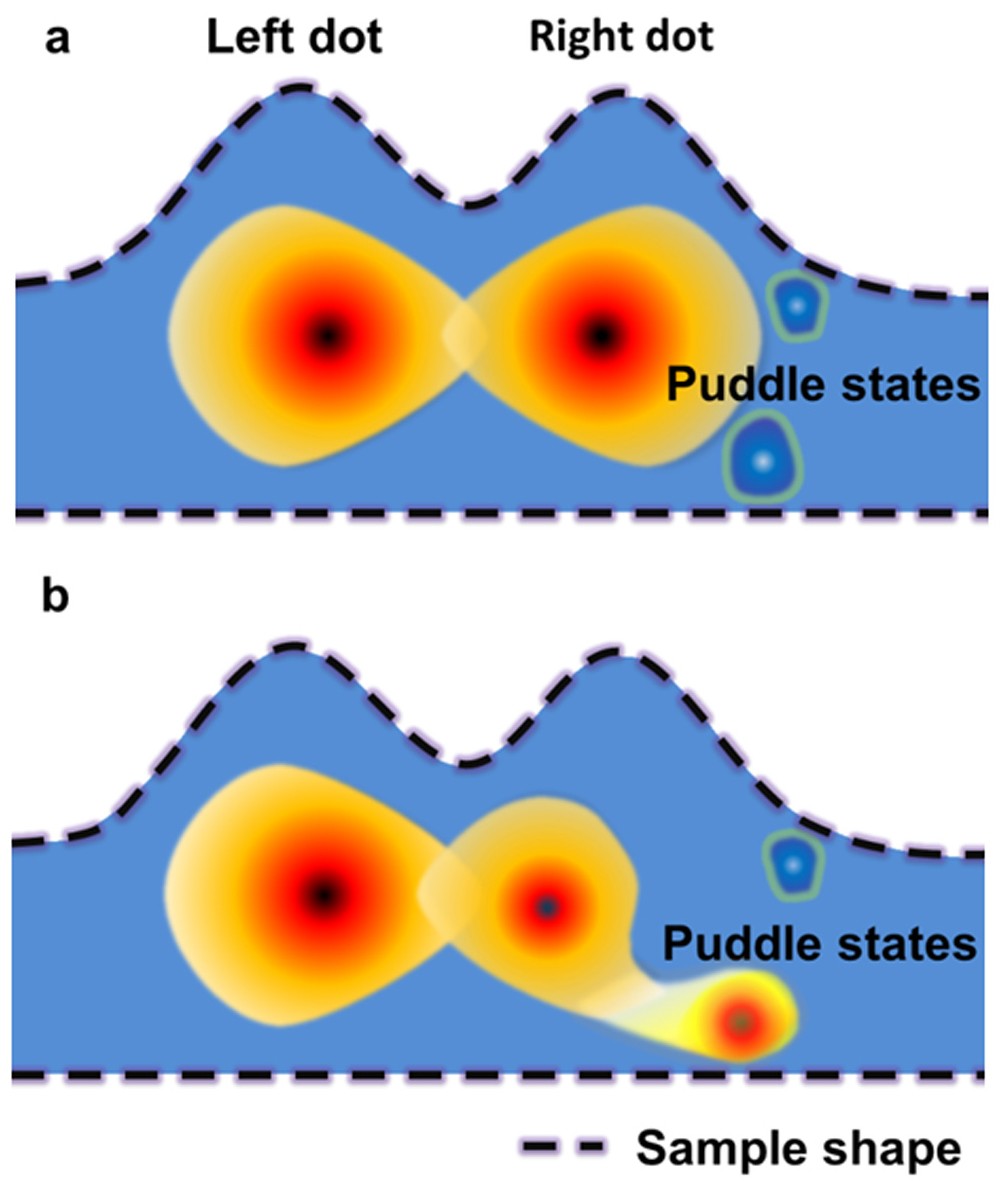

Graphic illustration of an effect of puddle states on the inter-dot tunnel coupling.
(a). The original states before b. (b). As an electron is added into the right dot, the DQD wavefunction is distorted leading to an abrupt change in inter-dot coupling.
