Figure 3
From: Atomic configurations at InAs partial dislocation cores associated with Z-shape faulted dipoles

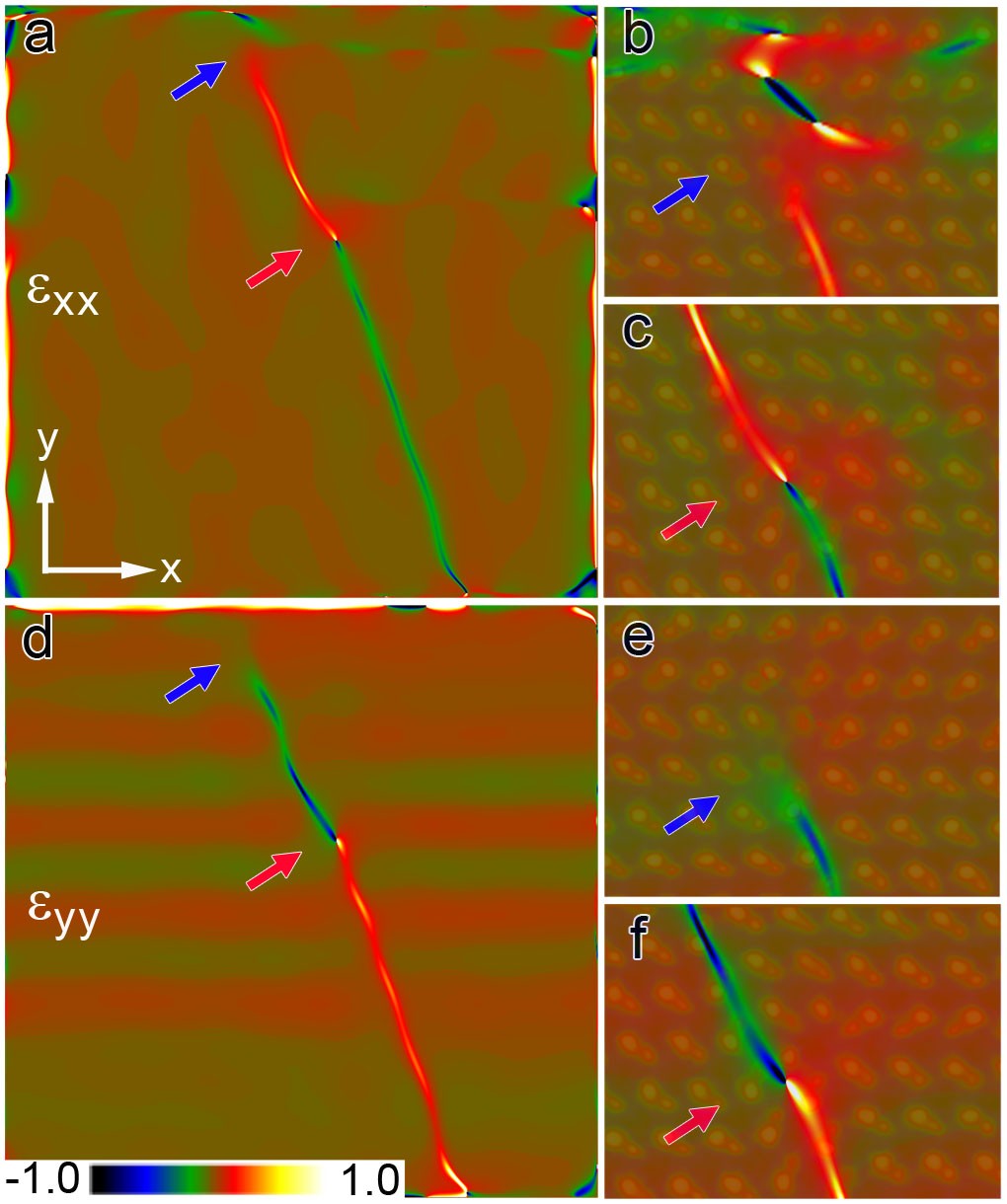

Geometric phase analysis of the two dislocation cores with opposite ions.
Geometric phase analysis based on the HAADF image obtained from the same area as Fig. 2(a) at lower magnification. The results of the normal strain components εxx and εyy are presented in (a) and (d), respectively. (b) and (c) εxx at core 1 and core 2 based on HAADF image at higher magnification. (e) and (f) εyy at core 1 and core 2, accordingly. The HAADF images are overlapped on (b), (c), (e), (f) to indicate the exact locations of the dislocation cores.
