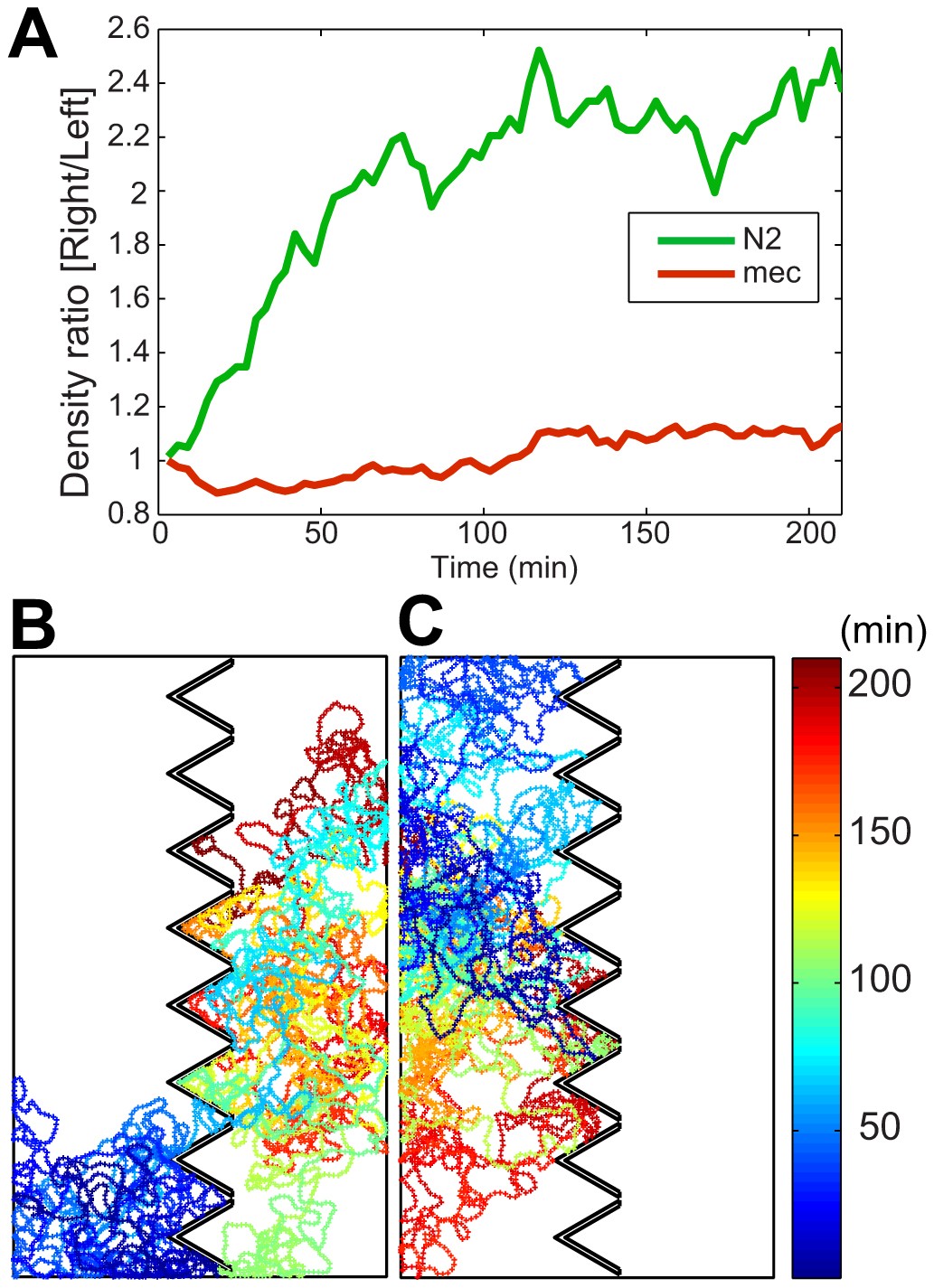

The rectification of wild-type and mec-4 worms obtained from computational modeling.

(A) Ratio of the density of worms in the right side of the funnels to all the worms in the chamber as a function of time. The ratios are averaged from 10 simulations, each of 50 worms and for 210 min. (B) Representative trajectory of a N2 worm. Color codes for time (blue: early; red: late). (C) Representative trajectory of a mec-4 mutant.
