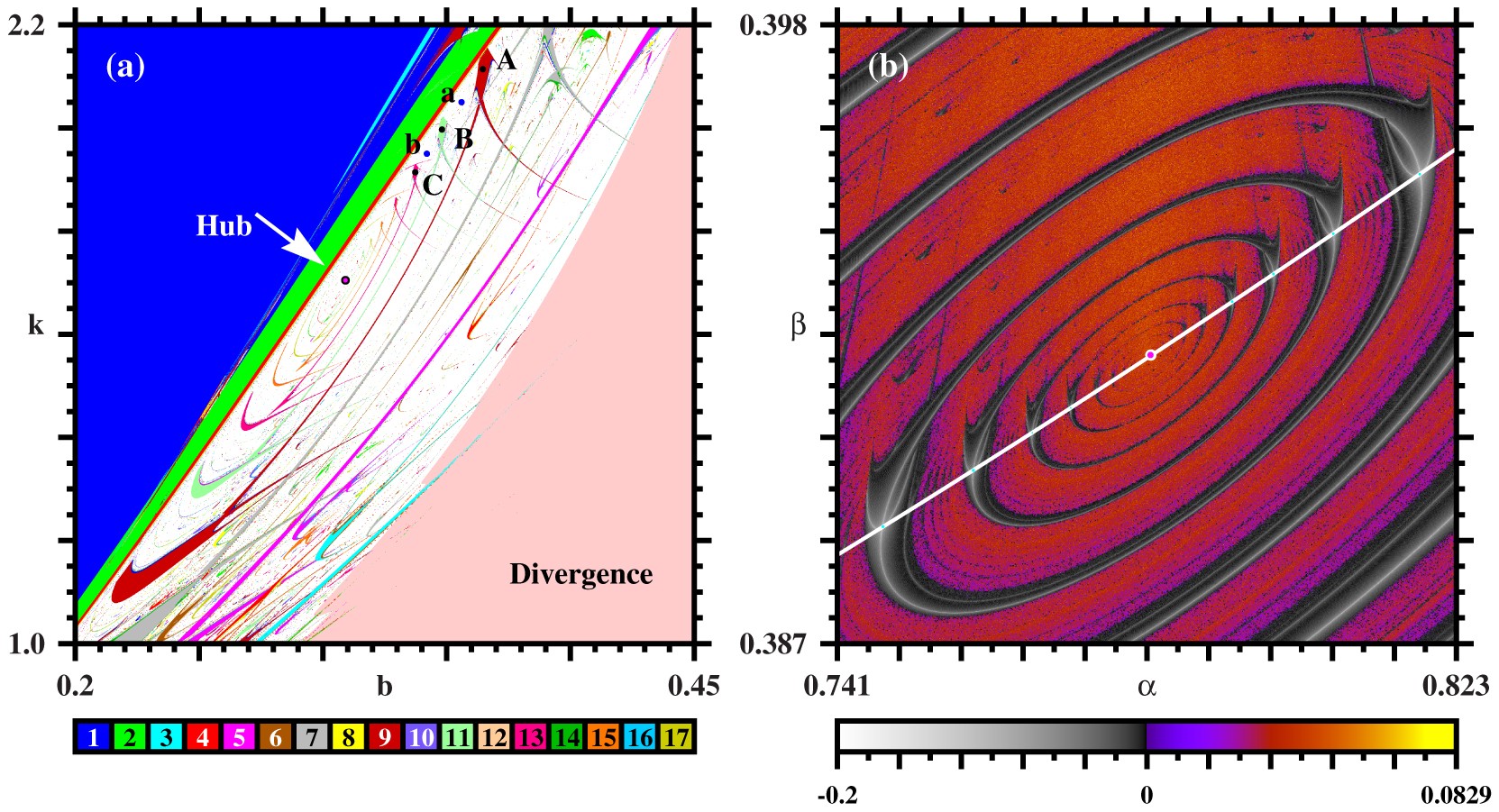

Figure 5
Comparison of structural details between (a) the new discontinuous spiral composed of the terminations shown in Fig. [6](a) and (b) an example of the known continuous spiral, composed of the “shrimp” in Fig. [6](b), here displaying Lyapunov exponents for a model of an abstract chemical reaction3.
Both spirals have a rather distinct structure and cannot be deformed one into the other.
