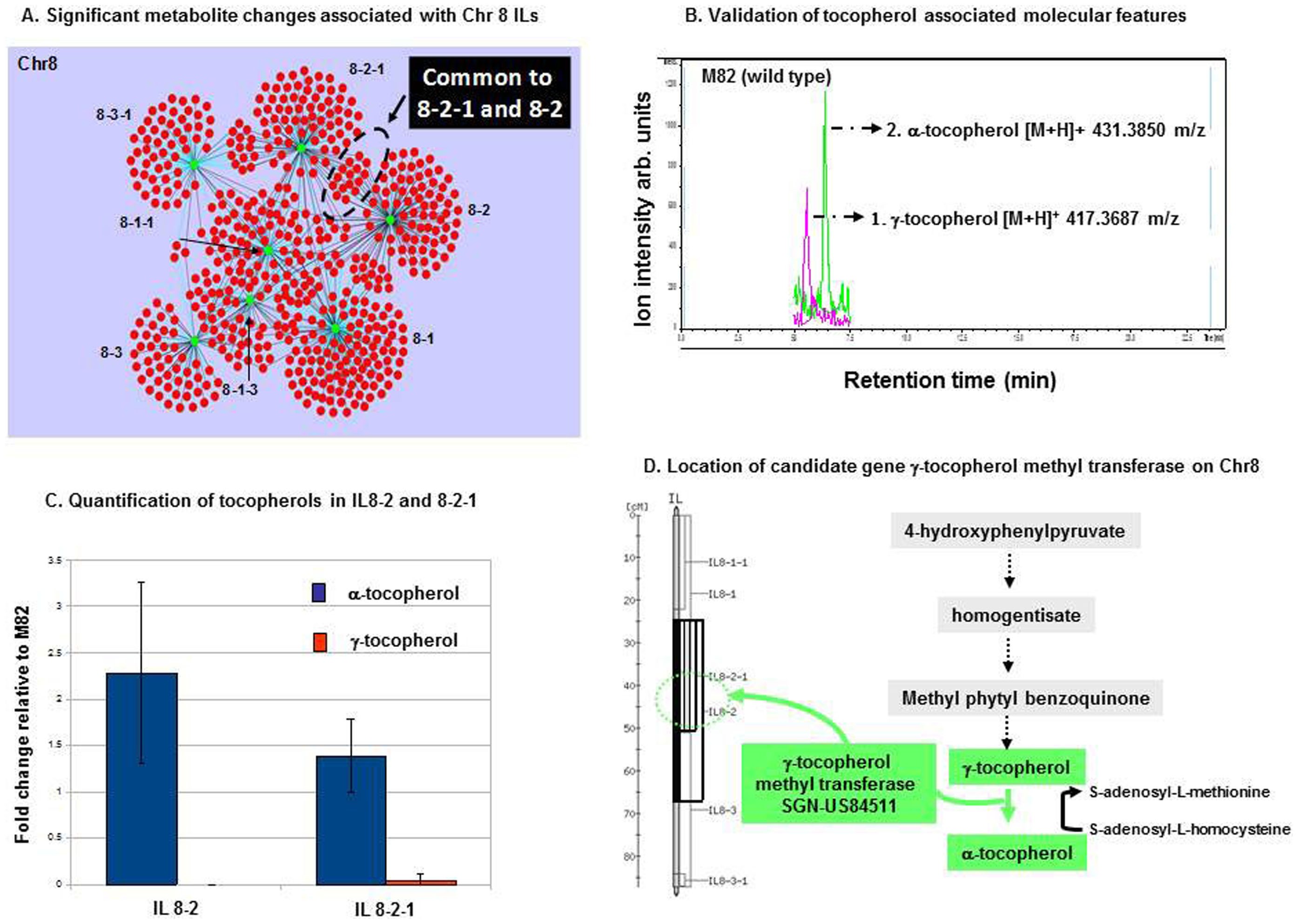

Figure 4
From: A genome-wide metabolomic resource for tomato fruit from Solanum pennellii
The identification of candidate genes from the metabolomic dataset.
(A) Changes in molecular features (metabolites) associated with Chr8 ILs. Each green dot is an IL, red dot a molecular feature (putative metabolite). The black connecting lines show an increase, the blue a decrease. The cluster of features circled represents significant metabolite changes common to both 8-2 and 8-2-1, of which a reduction in γ-tocopherol and increase in α-tocopherol was observed. (B) LC-MS profile validating the identity of tocopherols. (C) Quantitative changes (± s.e.) in tocopherols (γ and α) found in IL8-2 and IL8-2-1, relative to their M82 comparator. (D) Co-localization of the candidate gene with the change in tocopherol metabolites in IL8-2 and 8-2-1, as well as the position of the candidate gene product within the tocopherol biosynthetic pathway.
