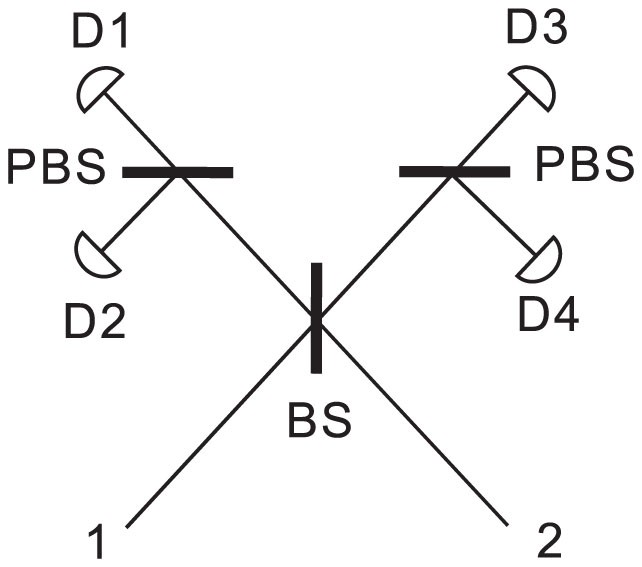

Figure 1

A schematic of the experimental setup for the collective measurements at the UTP.

BS: beam-splitter; PBS: polarization beam-splitter; D1 - D4: single-photon detector; 1, 2: input port for photons. Incident and output lights at the left side of BS are mode a, lights at the right side of BS are mode b.
