Figure 1

From: Single Crystalline Co3O4 Nanocrystals Exposed with Different Crystal Planes for Li-O2 Batteries

Figure 1

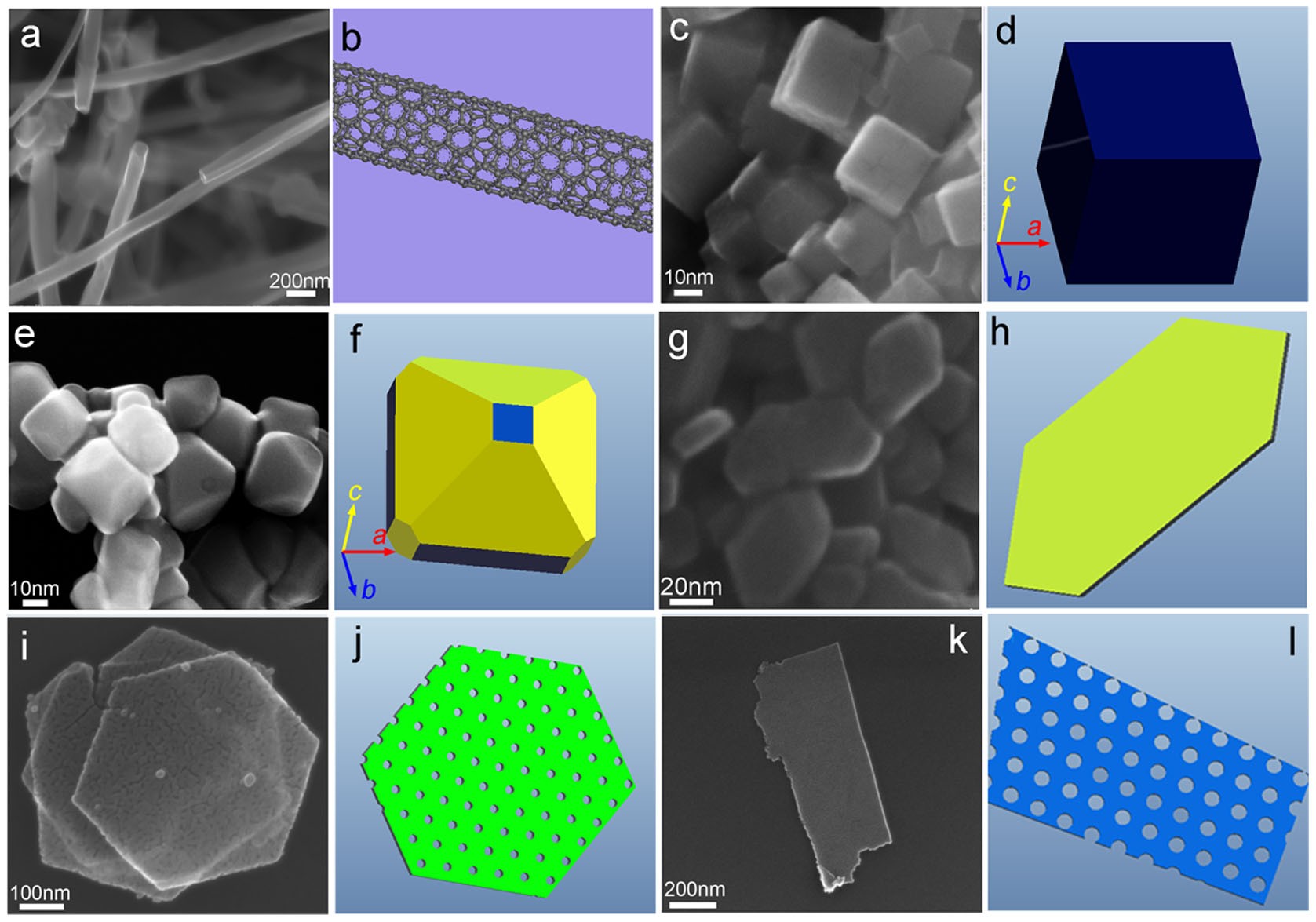

Morphology characterization of Co3O4 nanocrystals exposed with different crystal planes.

SEM images and models of CNT (a, b) and Co3O4 with different morphologies: nanocubes (c, d), pseudo octahedrons (e, f), nanosheets (g, h), hexagonal nanoplatelets (i, j) and nanolaminar (k, l). Different colours in the models represent different crystal planes: blue: {100}, yellow: {110}, green: {111} and light blue: {112}.
