Figure 6
From: Single Crystalline Co3O4 Nanocrystals Exposed with Different Crystal Planes for Li-O2 Batteries
Crystal structure analysis.

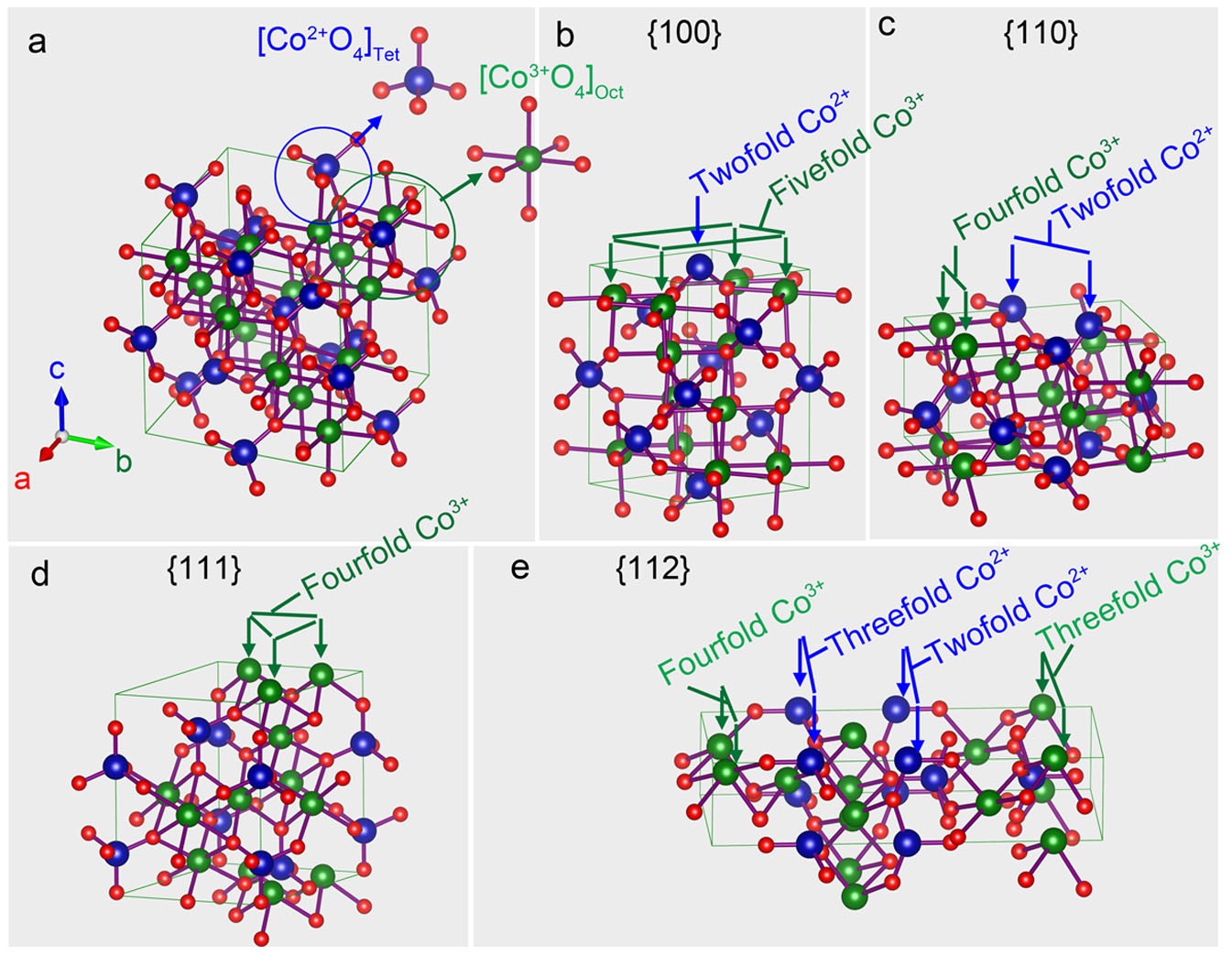

Illustration of the cubic Co3O4 spinel structure (a) and the atom configurations of the {100} (b), {110} (c), {111} (d) and {112} (e) crystal planes.
