Figure 8
From: Single Crystalline Co3O4 Nanocrystals Exposed with Different Crystal Planes for Li-O2 Batteries
Electrons density analysis.

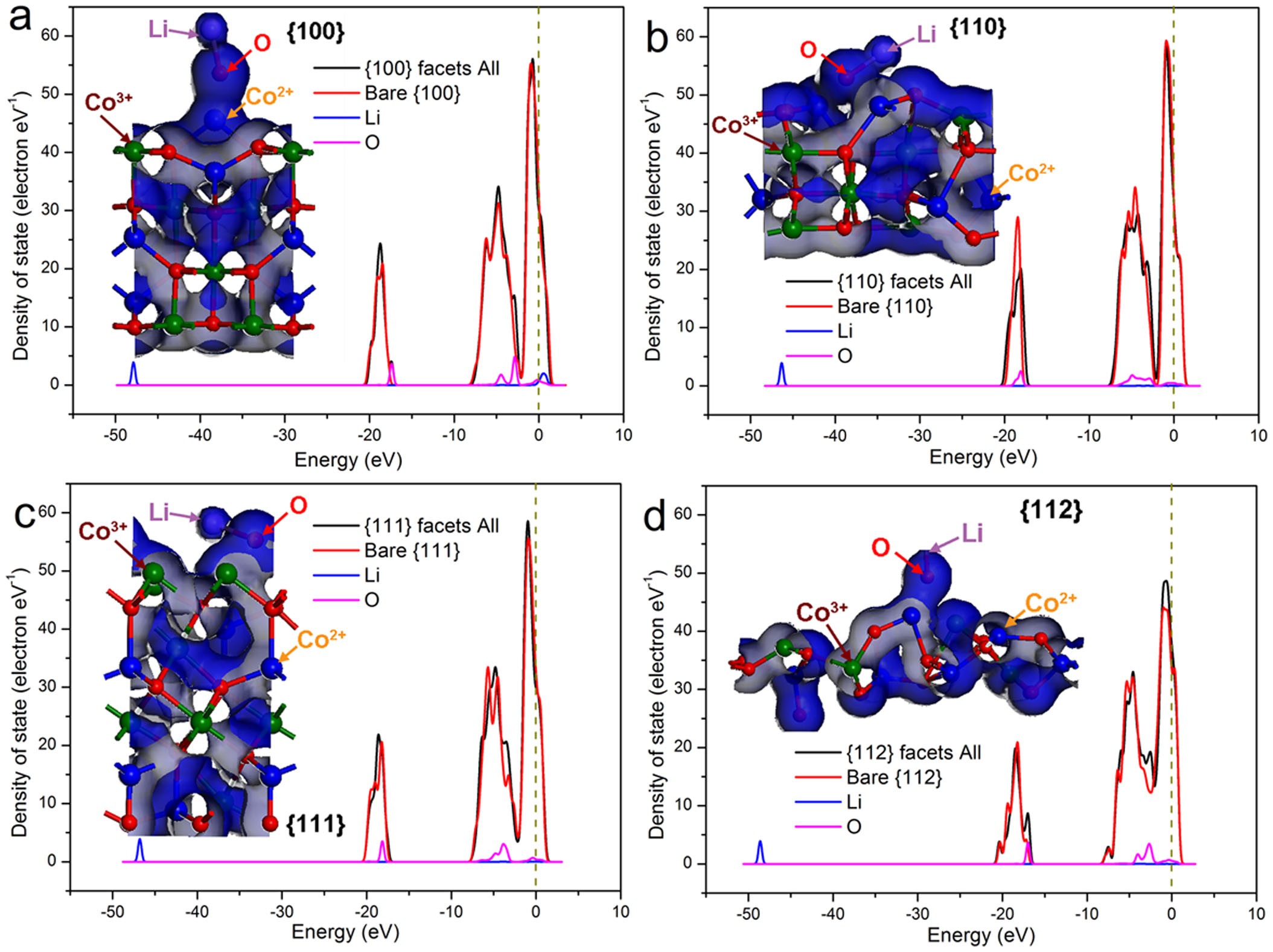

Density of state for the {100} (a), {110} (b), {111} (c) and {112} (d) crystal planes interacting with the Li and O atoms. Insets of each subfigure are the corresponding electrons density plots.
