Figure 4

From: Branching angles of pyramidal cell dendrites follow common geometrical design principles in different cortical areas

Figure 4

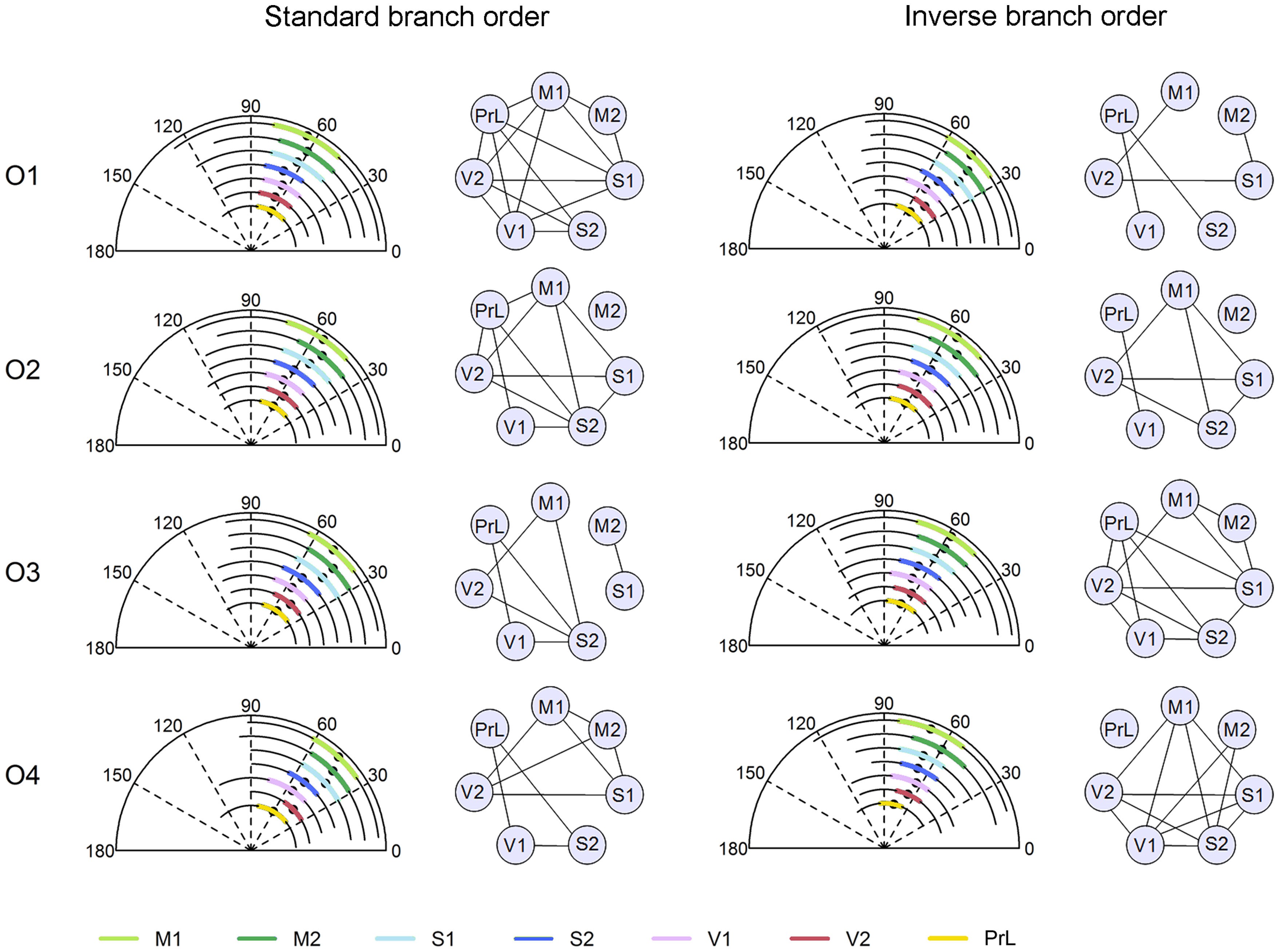

Circular boxplots showing the comparison of angles, by branch order, of the seven different cortical regions analyzed for standard branch order (left) and inverse branch order (right).

Test-based diagrams are shown next to the corresponding boxplot. Node names are the cortical areas. (see Supplementary Tables 18–21 for further details on statistical tests).
