Figure 6

From: Testing an unusual in vivo vessel network model: a method to study angiogenesis in the colonial tunicate Botryllus schlosseri

Figure 6

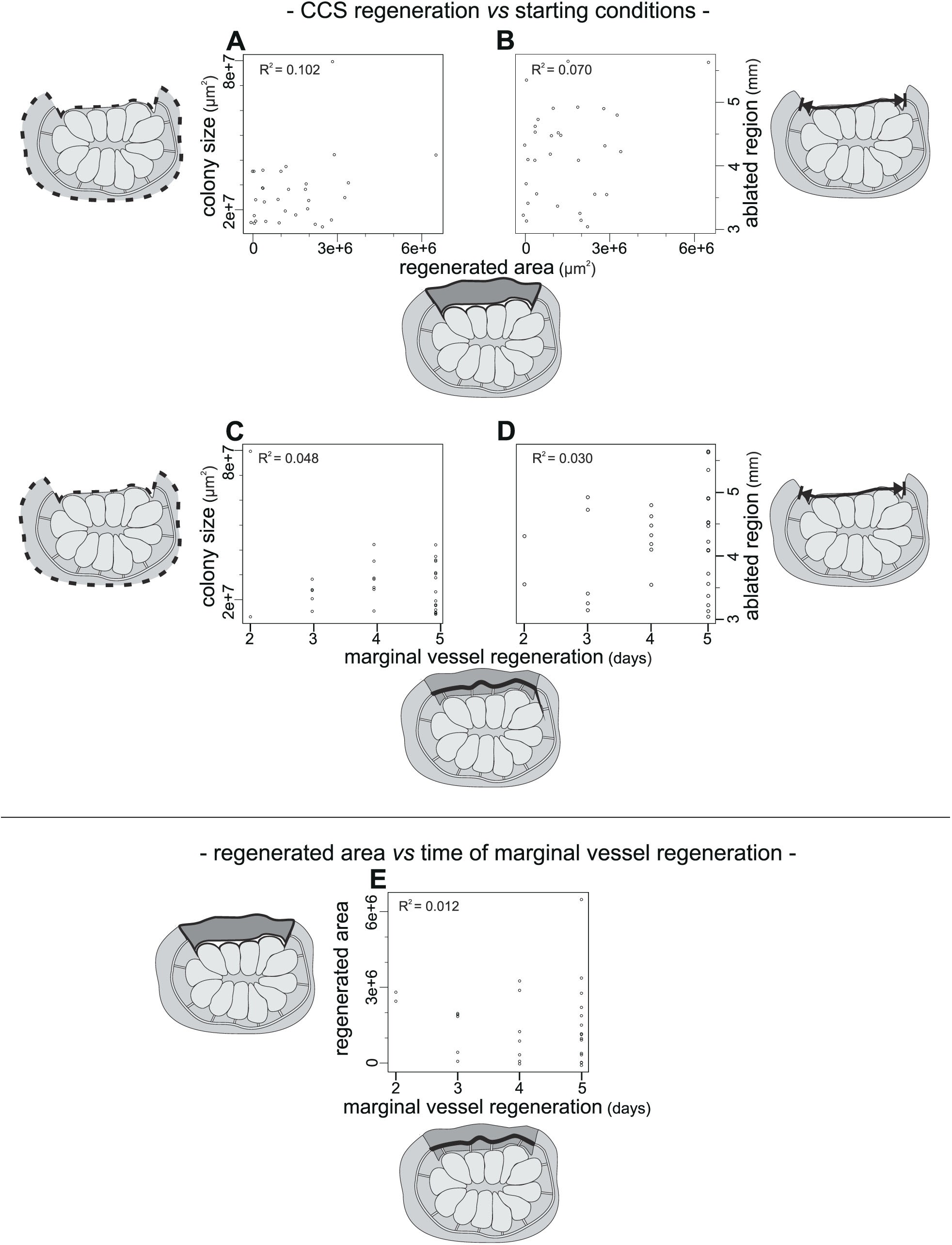

Plots of the linear regression analyses and respective R2.

(A–D) Regression plots showing the relationship between a regeneration parameter (regenerated area or time of marginal vessel regeneration) and a starting condition parameter (colony size or ablated region size) in the colonies injected with PBS. (E) Regression plot showing the relationship between the two regeneration parameters in the colonies injected with PBS. Each plot is flanked by the sketches of the analysed parameters.
