Figure 3
From: Mesoporous hexagonal Co3O4 for high performance lithium ion batteries

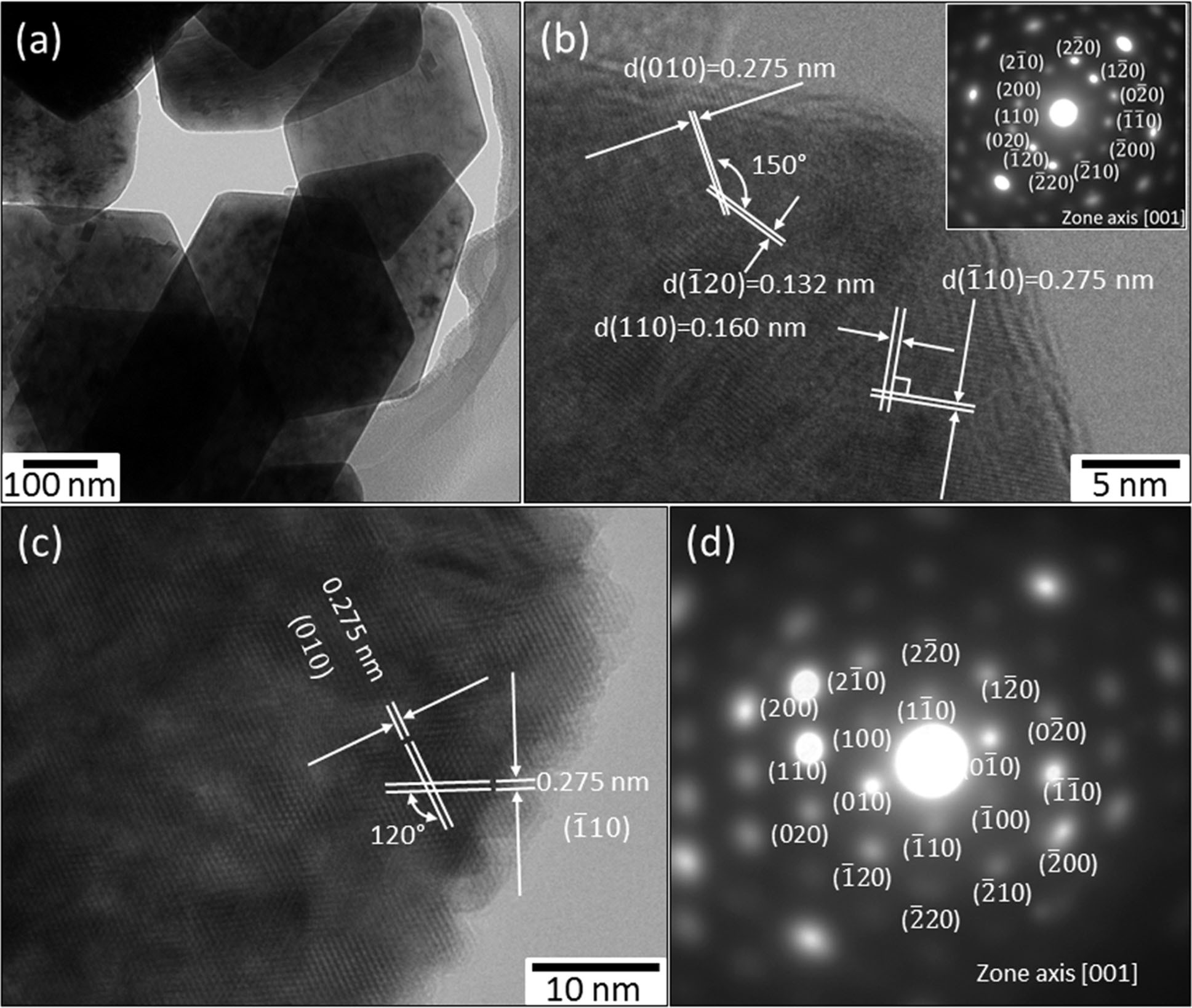

(a) Low magnification TEM image of β-Co(OH)2 nanoplates. (b) HRTEM image of a β-Co(OH)2 single crystal. The inset is the corresponding SAED. (c) Lattice resolved HRTEM image of β-Co(OH)2 crystal. (d) SAED of the crystal shown in (c).
