Figure 6
From: Mesoporous hexagonal Co3O4 for high performance lithium ion batteries

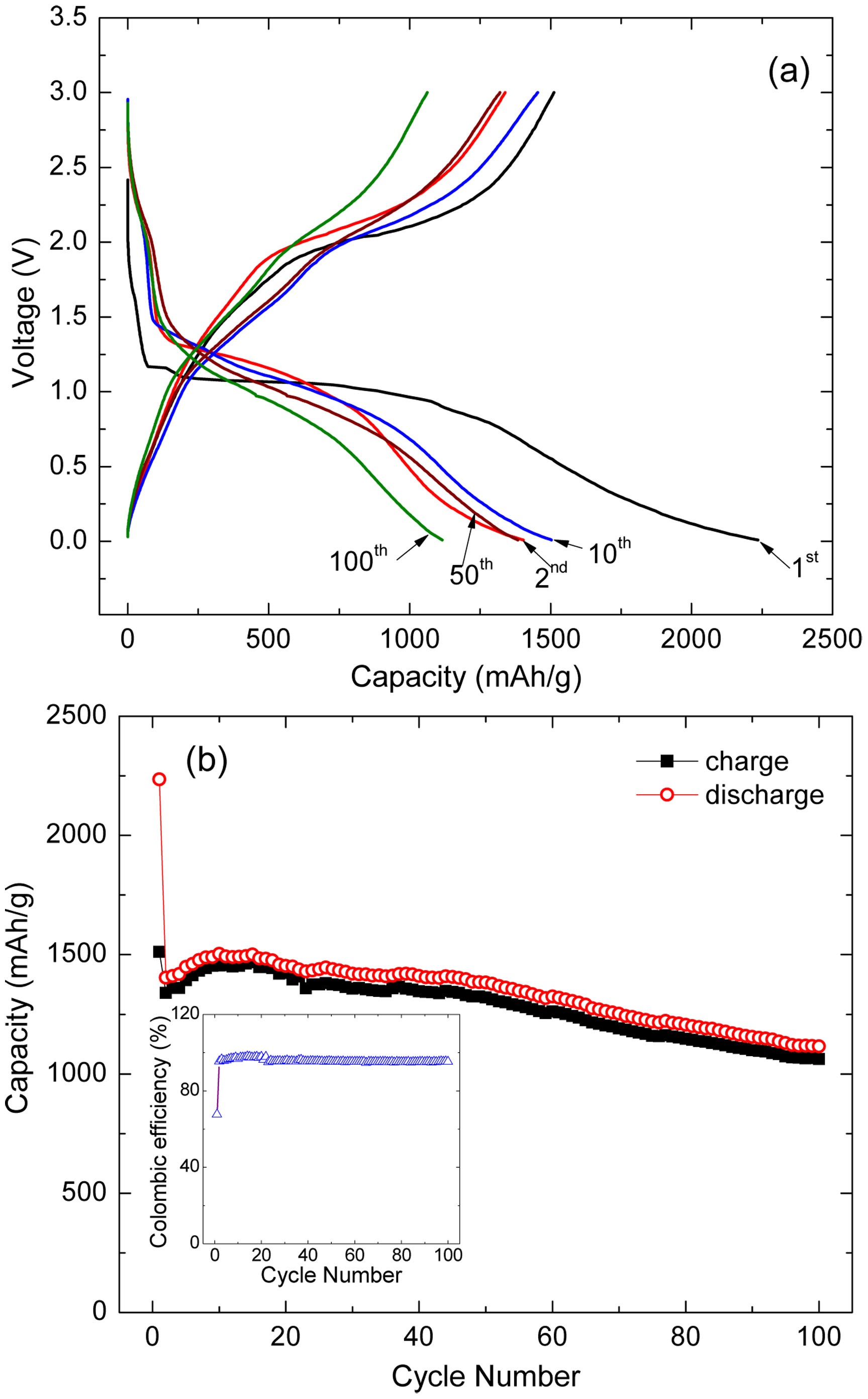

(a) Charge/discharge profiles of mesoporous Co3O4 nanoplates at 0.05 C current rate. (b) Cycling performance of mesoporous Co3O4 nanoplates at 0.05 C current rate. The inset of (b) is the corresponding Colombic efficiency.
