Figure 4
From: Dissecting the Human Protein-Protein Interaction Network via Phylogenetic Decomposition

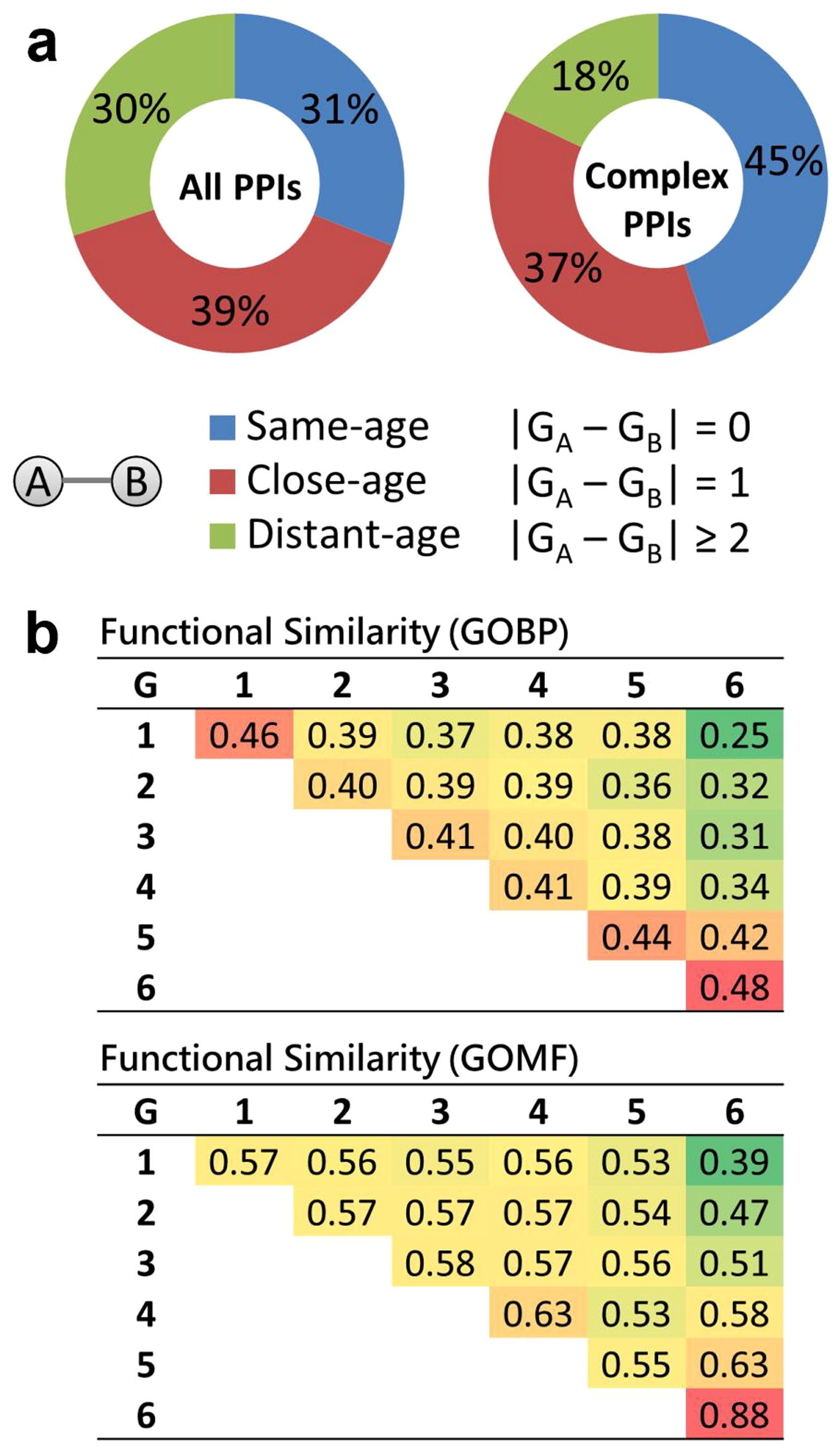

Age homogeneity and functional similarity of PPI dyads.
