Figure 1 | Scientific Reports

Figure 1

From: Influence of MoO3(110) Crystalline Plane on Its Self-Charging Photoelectrochemical Properties

Figure 1

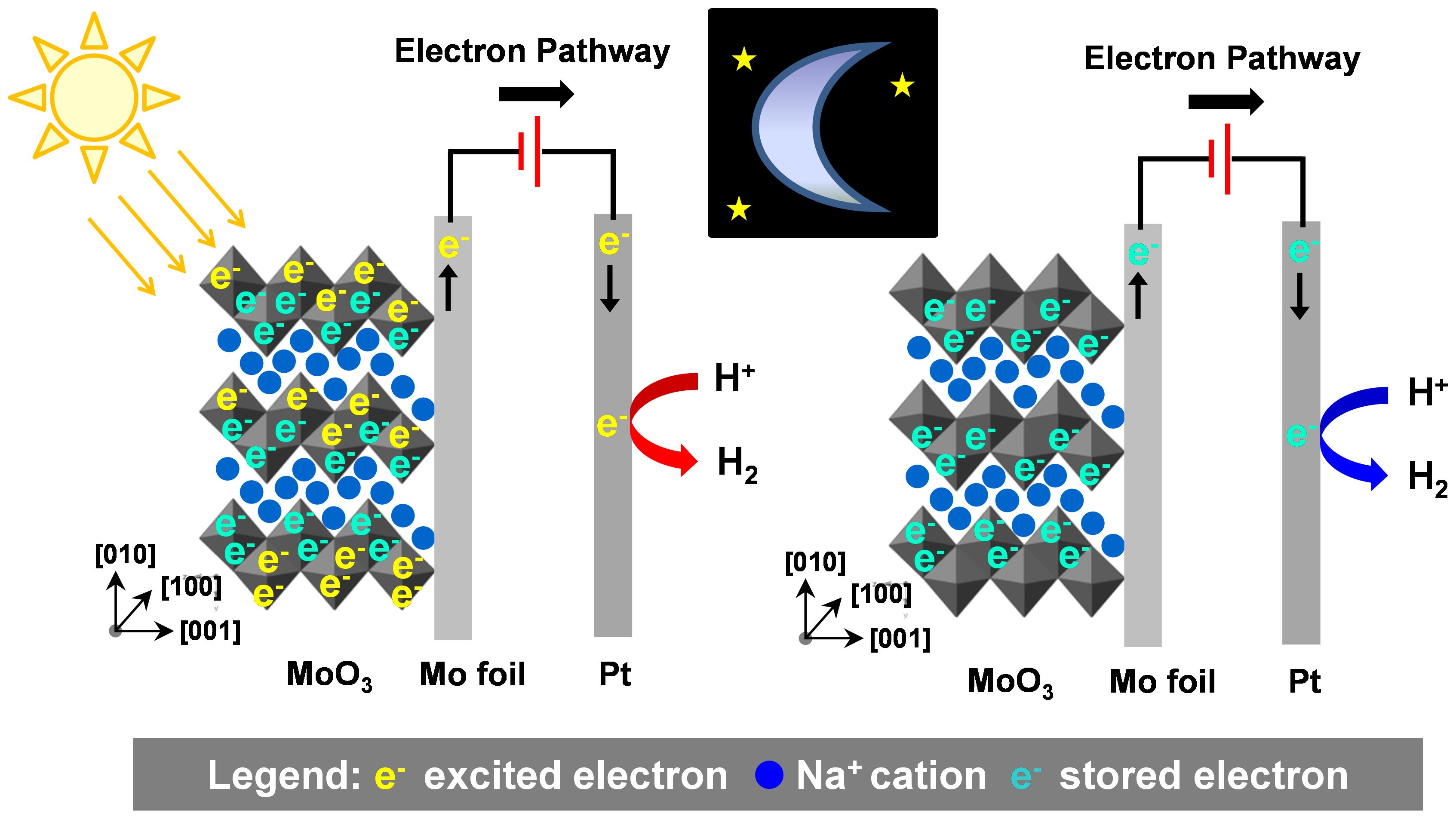

Schematic representation of self-photo-recharge ability of MoO3.

Subjected to positive bias and illumination, MoO3 demonstrates the capacity to generate and store excited electrons in its layered structure through the intercalation of alkali cations. The stored electrons can be subsequently released under discharging conditions in the dark to allow reductive reaction(s) to continue to occur in absence of light.
