Figure 2
From: Influence of MoO3(110) Crystalline Plane on Its Self-Charging Photoelectrochemical Properties

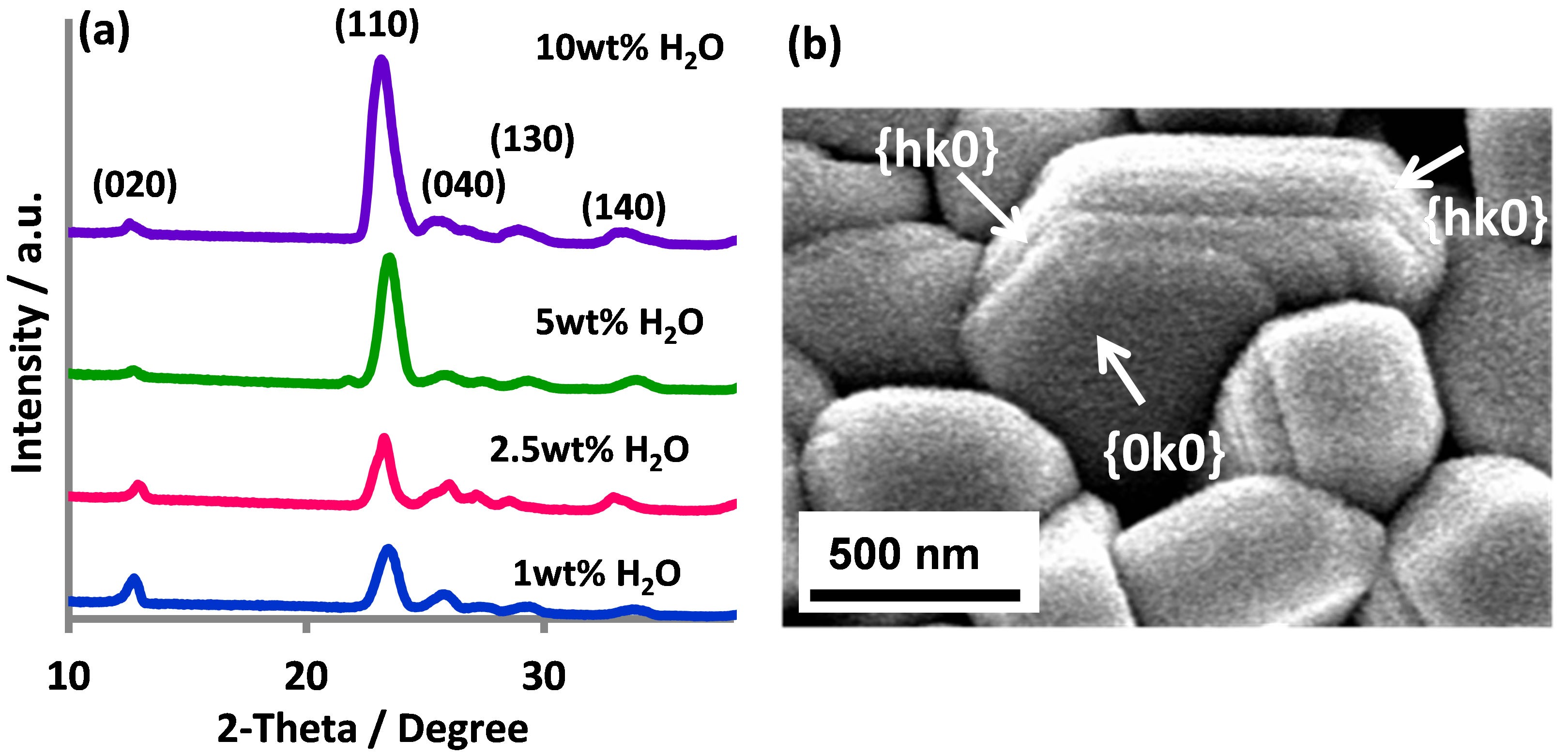

(a) XRD patterns of α-MoO3 thin films synthesised using 0.5 wt% NaF ethylene glycol electrolyte with varying water content and; (b) high magnification SEM images of α-MoO3 particles (5 wt% H2O).
