Figure 4
From: Genomic and metabolic analysis of fluoranthene degradation pathway in Celeribacter indicus P73T

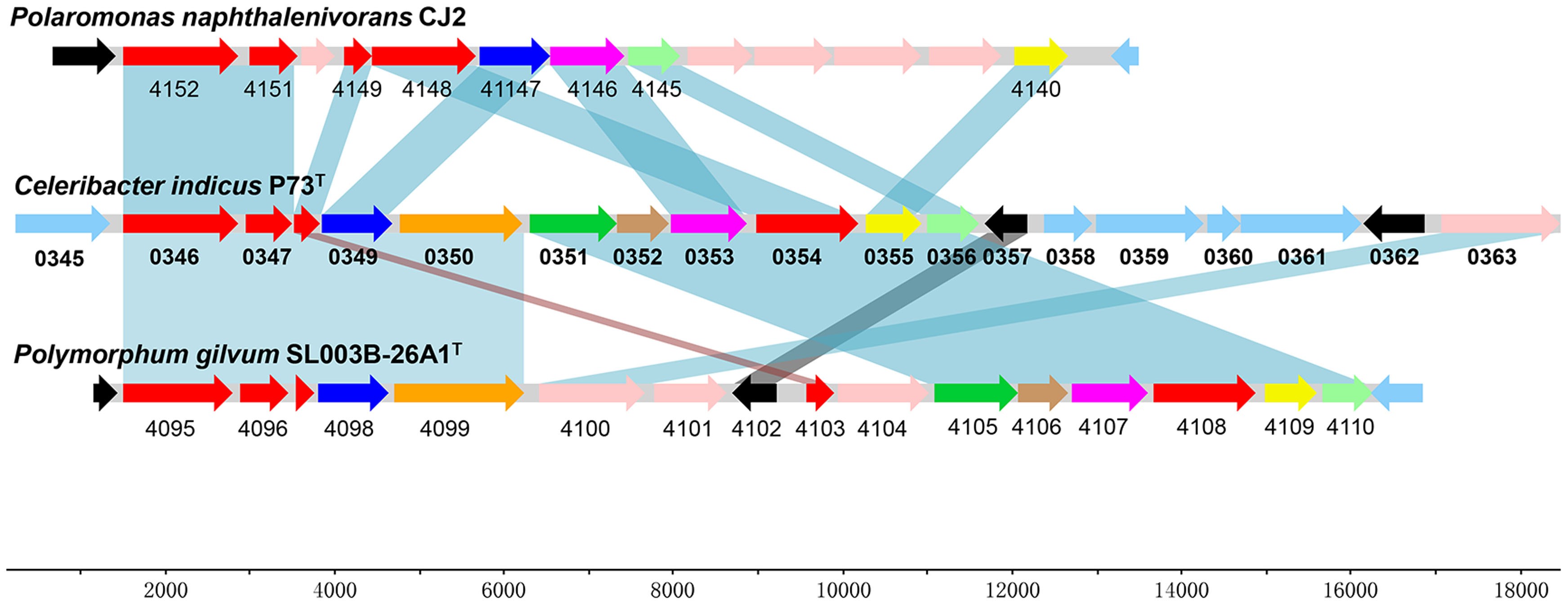

Organization of the gene cluster involved in PAHs catabolism in the P73T genome.
For comparison, orthologous genes from Polaromonas naphthalenivorans CJ2 and Polymorphum gilvum SL003B-26A1 are aligned to the corresponding genes from P73T. Orthologous genes are connected by shaded boxes. Annotation data for genes P73_0346–0357 from strain P73T are provided in (Supplementary Data S9). The CJ2 genes Pnap_4140–4152 are located at positions 15183–26352 bp in the genome. The SL003B-26A1 genes SL003B_4095–4110 are located at positions 4401320–4416076 bp in the genome.
