Figure 2
From: The Strain Rate Effect on the Buckling of Single-Layer MoS2

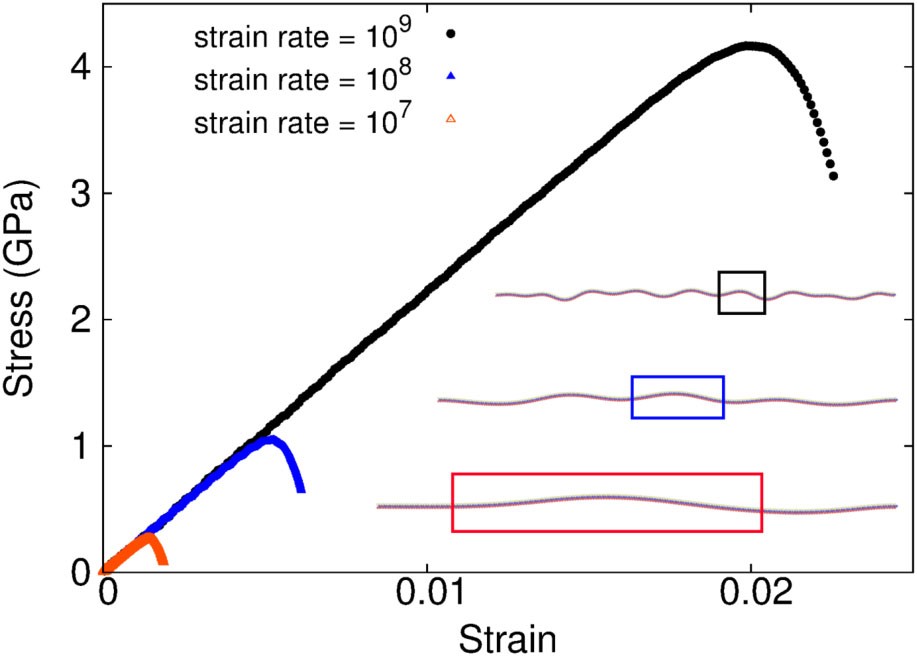

Strain rate effect on the buckling critical strain of SLMoS2 with nx = 100.
Insets (from top to bottom) illustrate the buckling mode of the SLMoS2 at strain rates of 109 s−1, 108 s−1 and 107 s−1, respectively. The size of a single buckling ripple is enclosed by the rectangular.
