Figure 4
From: The Strain Rate Effect on the Buckling of Single-Layer MoS2

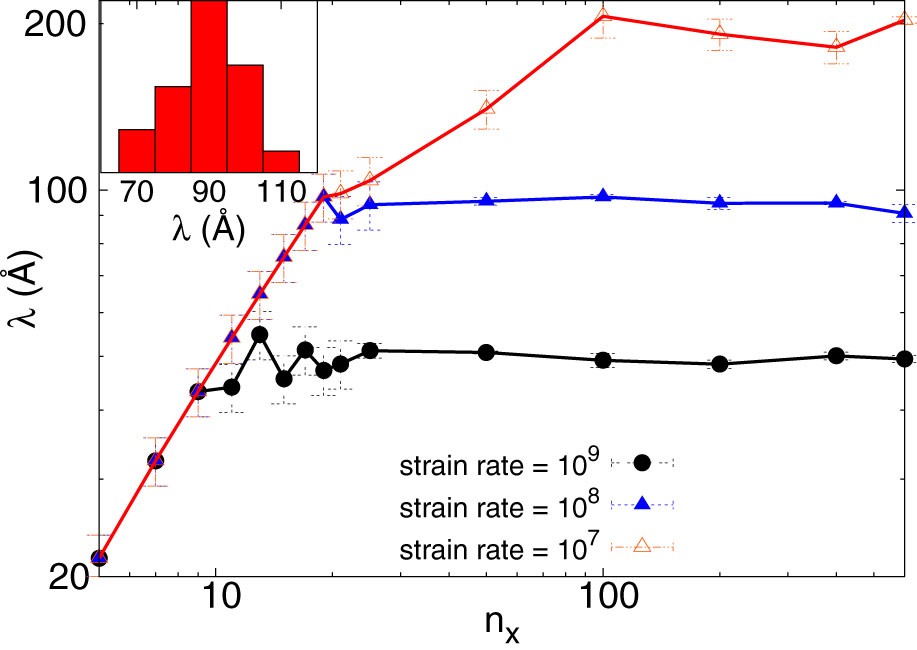

The log-log plot for the length dependence of the average ripple size (λ) for SLMoS2 compressed by strain rates of 109 s−1, 108 s−1 and 107 s−1, respectively.
Inset shows the distribution of the ripple size for a buckling SLMoS2 with nx = 600, which is compressed at
. Twenty good ripple samples have been picked out from the buckled SLMoS2 for the production of this histogram plot. The averaged ripple size from the histogram figure is λ = 90.7 ± 3.3 Å. Lines are guide to the eye.
