Figure 2
From: Diminished serum repetin levels in patients with schizophrenia and bipolar disorder

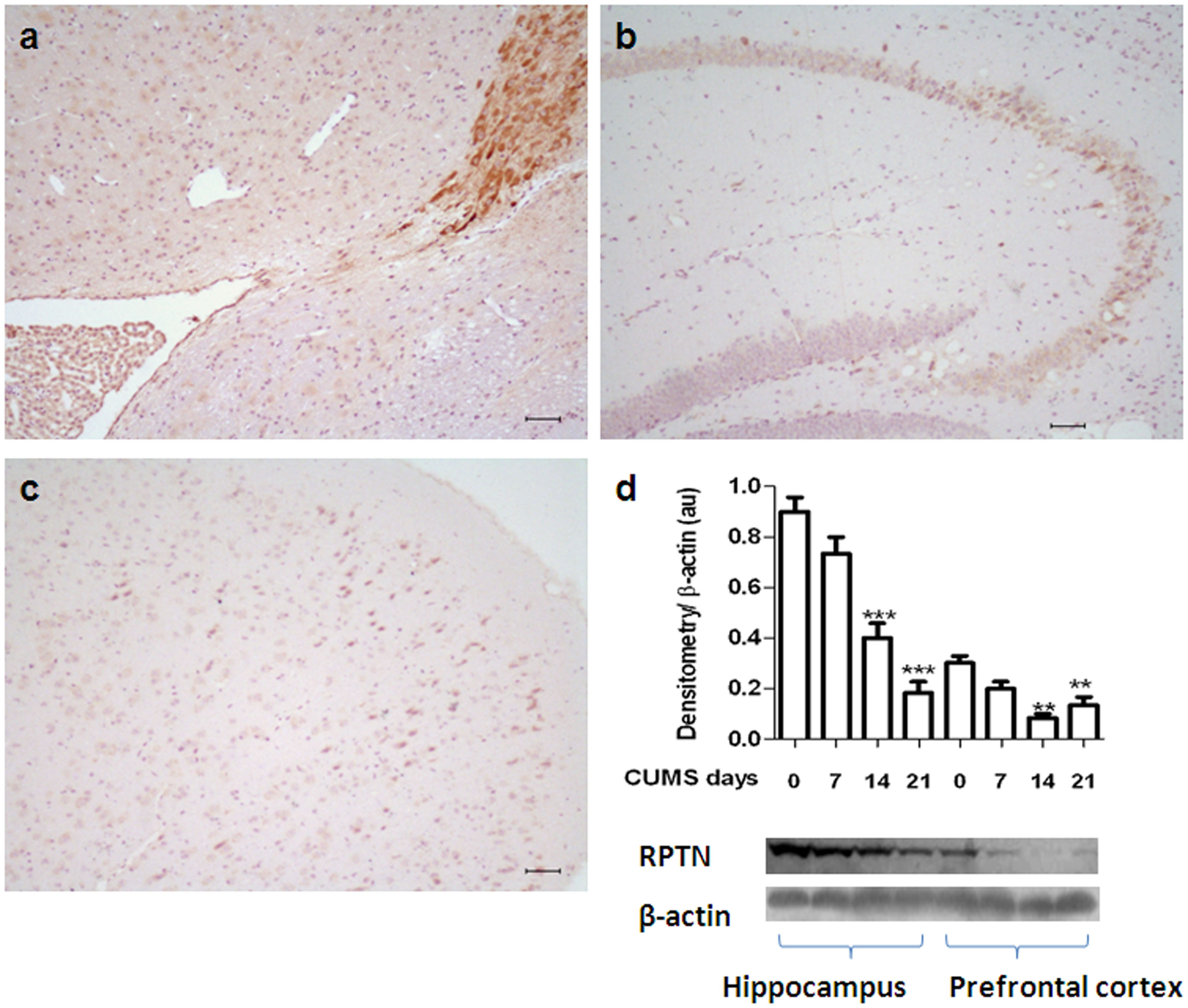

Immunohistochemistry and Western blot detection of RPTN expression in mouse brain.
a, Choroid plexus (fourth ventricle), ependyma and locus coeruleus. b, hippocampus. c, prefrontal cortex. d, lower panels are Western Blot of RPTN and endogenous β-actin control in the hippocampus and prefrontal cortex of mice subjected to CUMS on day 0 to 21; upper graph is the densitometry analyses of RPTN over corresponding β-actin and expressed as arbitrary units (au) (n = 4). Scale bars are 50 μm. ** p < 0.05, *** p < 0.0001.
