Figure 5

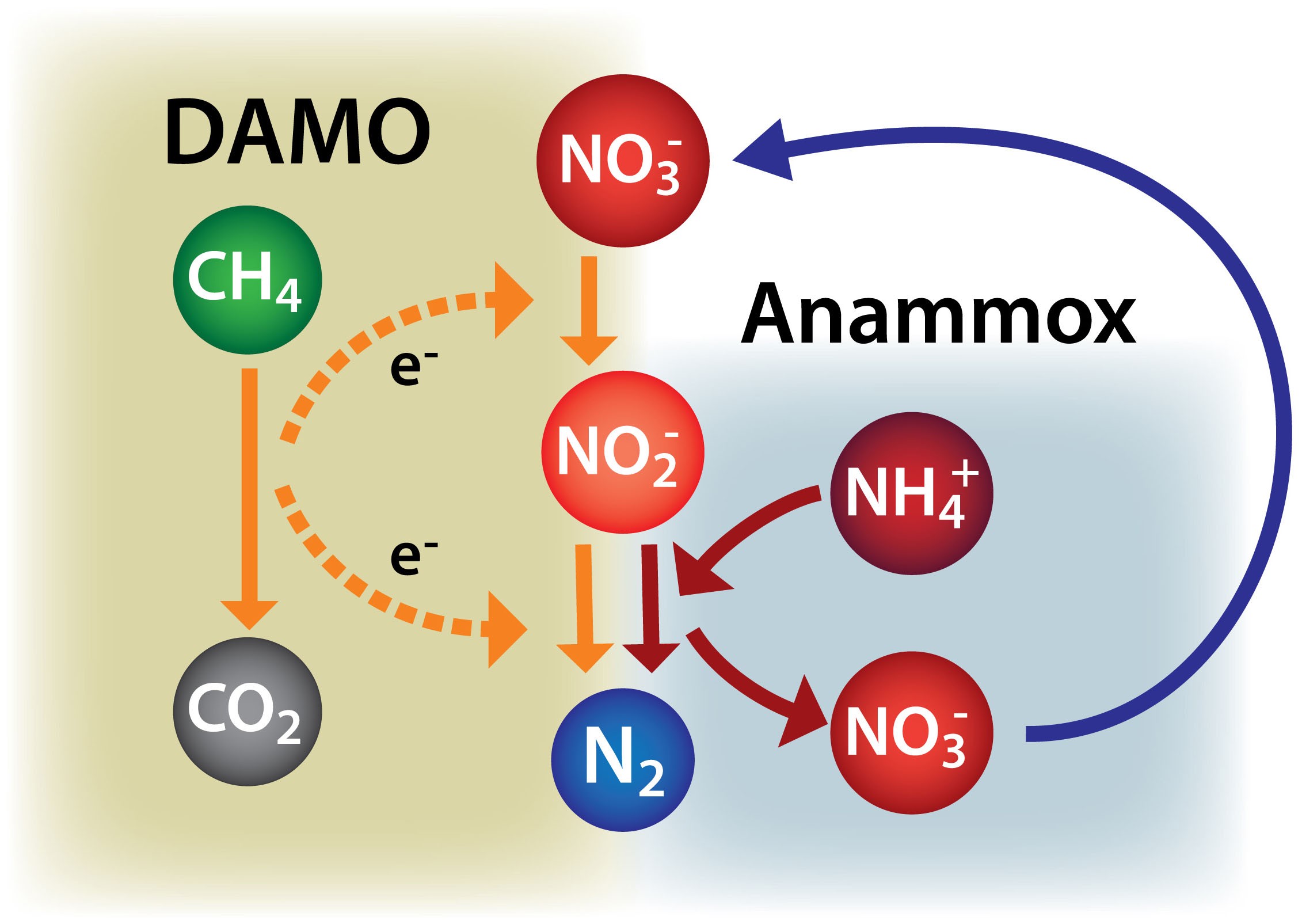

A conceptual model for the interactions between the DAMO and anammox processes in an anoxic environment rich in methane, ammonium and nitrate or nitrite.
Material flow and electron flow are shown in solid and dashed lines, respectively.
Figure 5 | Scientific Reports
