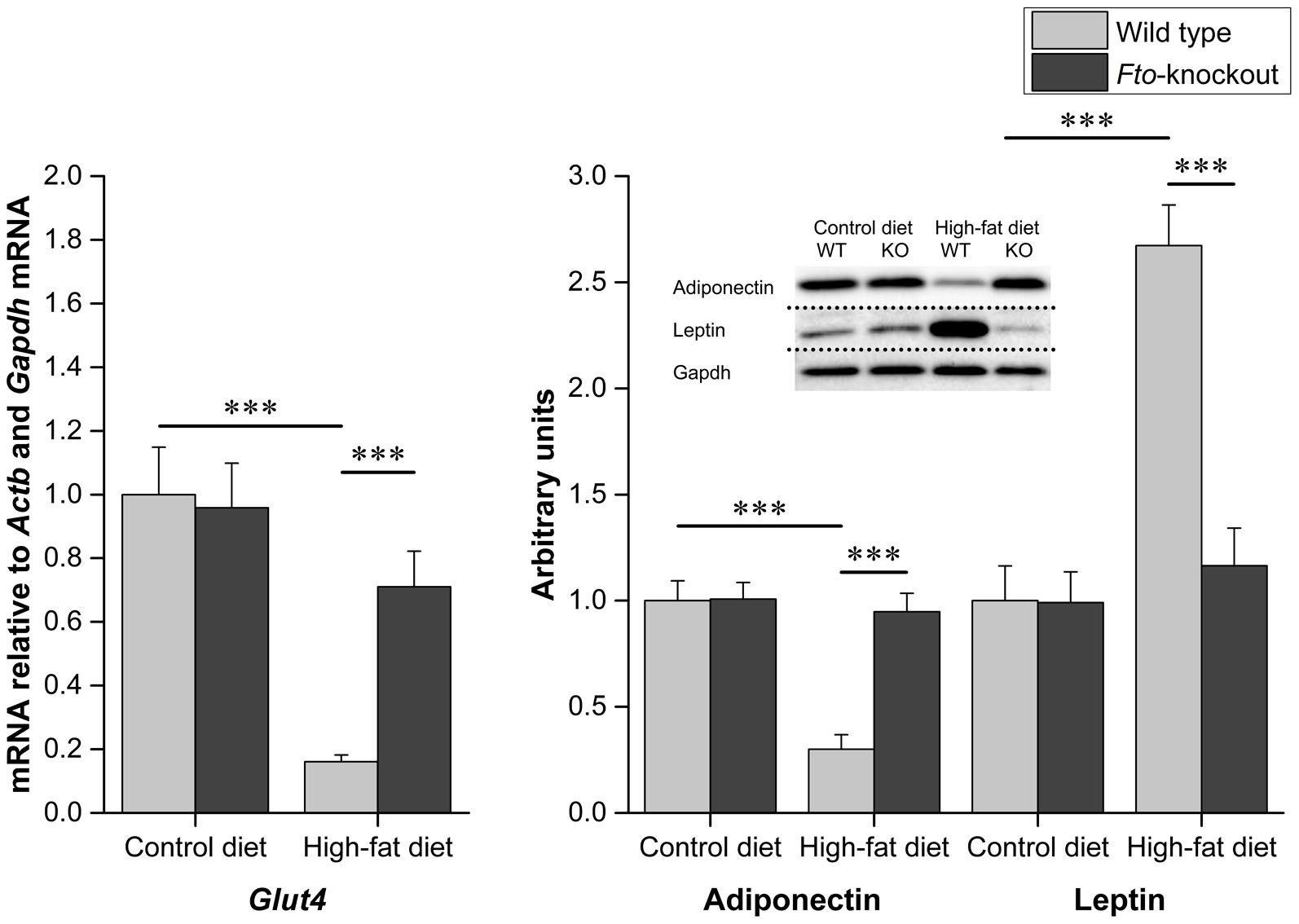

Figure 6
From: Fat mass- and obesity-associated gene Fto affects the dietary response in mouse white adipose tissue
Protein level of adipokines and relative expression of Glut4 in the white adipose tissue.
Band intensities were analyzed from membranes relative to protein amount loaded to the gel. All samples were run under same experimental conditions and dotted lines indicate the cropping lines. Amount of Glut4 mRNA was normalized using Actb and Gapdh as reference genes. Results are shown as mean ± SEM (n = 5–9 per group in gene expression analysis and n = 6 per group in protein analysis). Two-way ANOVA followed by simple main effects analysis with Bonferroni correction because of the significant interaction effect, *p < 0.05, **p < 0.01, ***p < 0.001.
