Figure 2

From: Difference in microRNA expression and editing profile of lung tissues from different pig breeds related to immune responses to HP-PRRSV

Figure 2

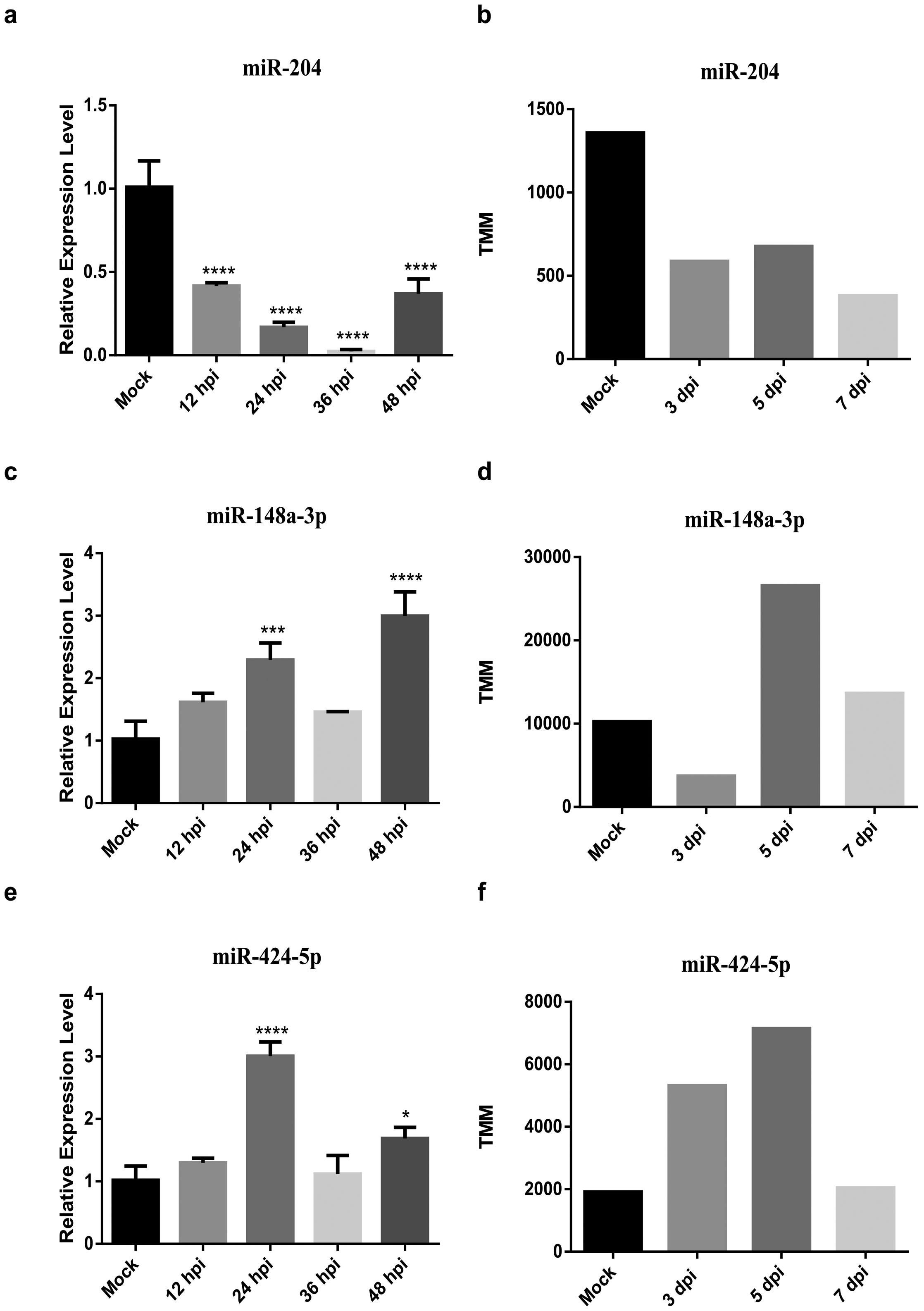

Validation of DEmiRNAs in PAMs from the lung of Tongcheng pig using qRT-PCR.

We randomly chose three DEmiRNAs (miR-204, miR-148a-3p, miR-424-5p) in the lung tissues of Tongcheng pigs from our data. (a), (c) and (e) are the qRT-PCR results; (b), (d) and (f) are TMM values of microRNAs. All the data for qRT-PCR were normalized to U6 and were represented as mean ± SD (n = 3). Statistical significance was analyzed by ANOVA; *p < 0.05; **p < 0.01; ***p < 0.001; ****p < 0.0001.
