Figure 3
From: Work-Hardening Induced Tensile Ductility of Bulk Metallic Glasses via High-Pressure Torsion

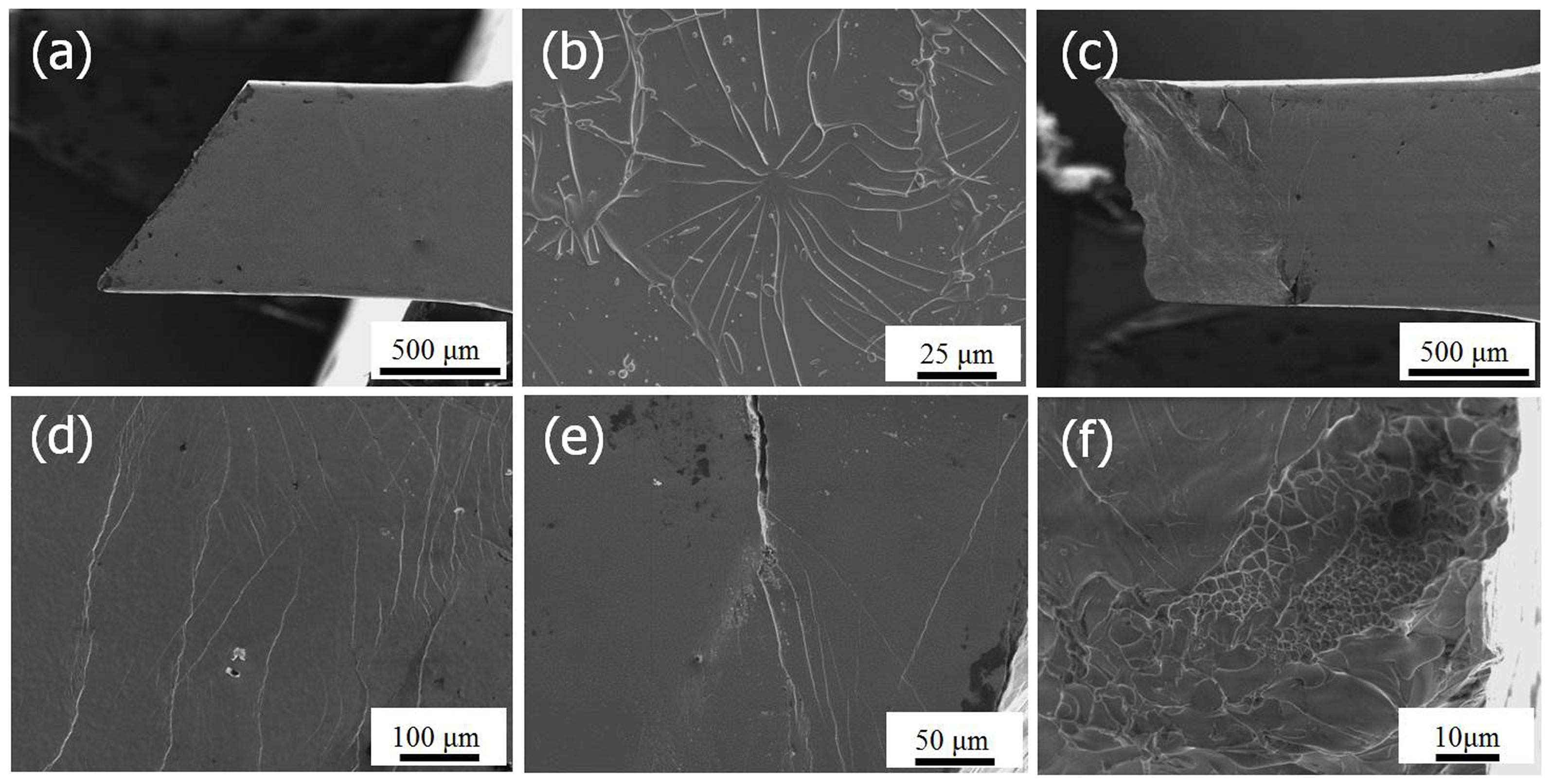

SEM images of (a) lateral surface of the as-cast specimen after a tensile test, (b) a combined vein and core features in the as-cast specimen, (c) lateral surface of the 30 turn specimen after a tensile test, (d) multiple shear bands on the 30 turn specimen, (e) shear band multiplication at the crack tip of the 30 turn specimen, (f) cell-like vein patterns of the 30 turn specimen.
