Figure 6
From: Work-Hardening Induced Tensile Ductility of Bulk Metallic Glasses via High-Pressure Torsion

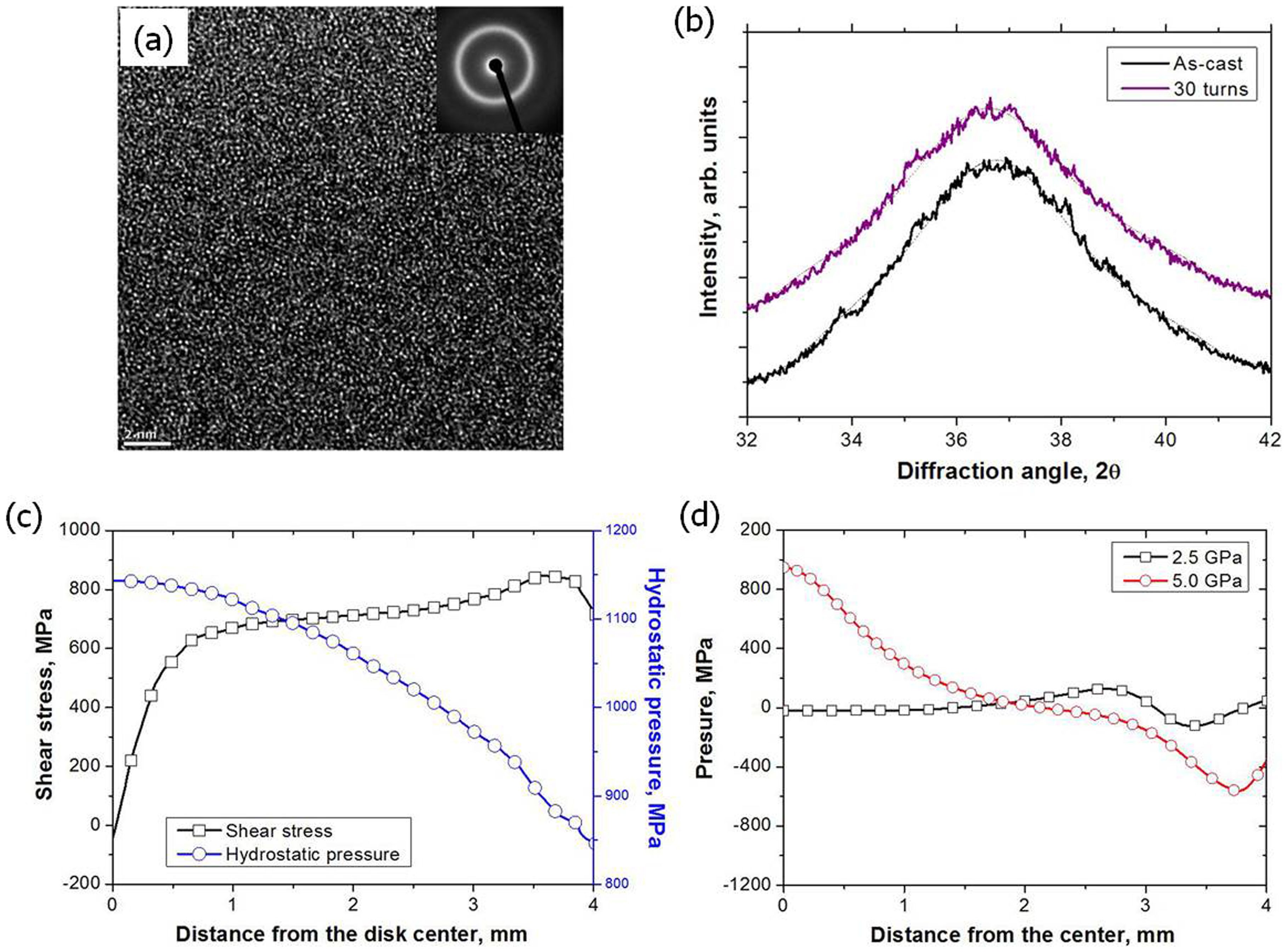

(a) High resolution TEM image of the 30 turn HPT specimen, (b) synchrotron X-ray diffraction patterns and FEM results on (c) distribution of shear stress and hydrostatic pressure after the 1 turn HPT process under 5 GPa and (d) residual stresses after 2.5 GPa and 5 GPa compression stages along the radial distance from the disk center.
