Figure 2

Dimeric interface of the structure of ARC CARD.

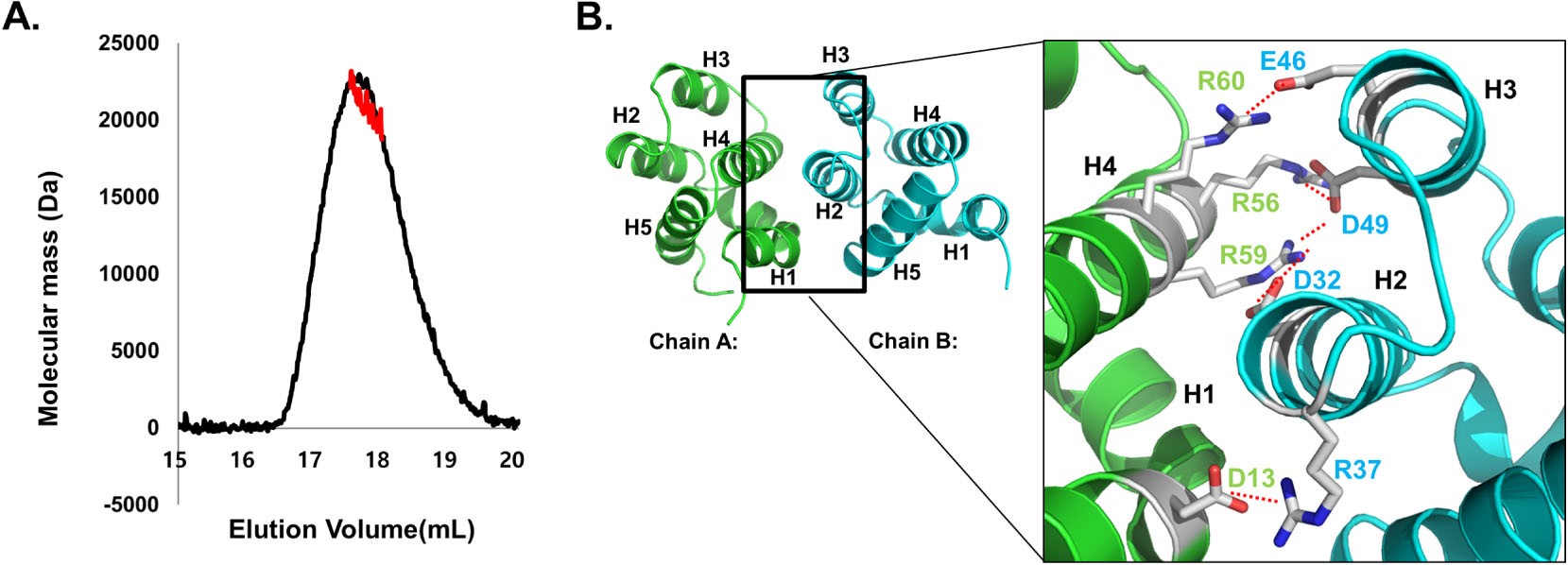

A. Multi-angle light scattering (MALS) profile. The red line indicates the experimental molecular weight. B. Close-up view of the interacting residues in the interface between two monomers. Helices are labelled and residues involved in the contact are shown as sticks. Salt bridges are shown as dashed lines.
