Figure 3
From: Temperature-Dependent Asymmetry of Anisotropic Magnetoresistance in Silicon p-n Junctions

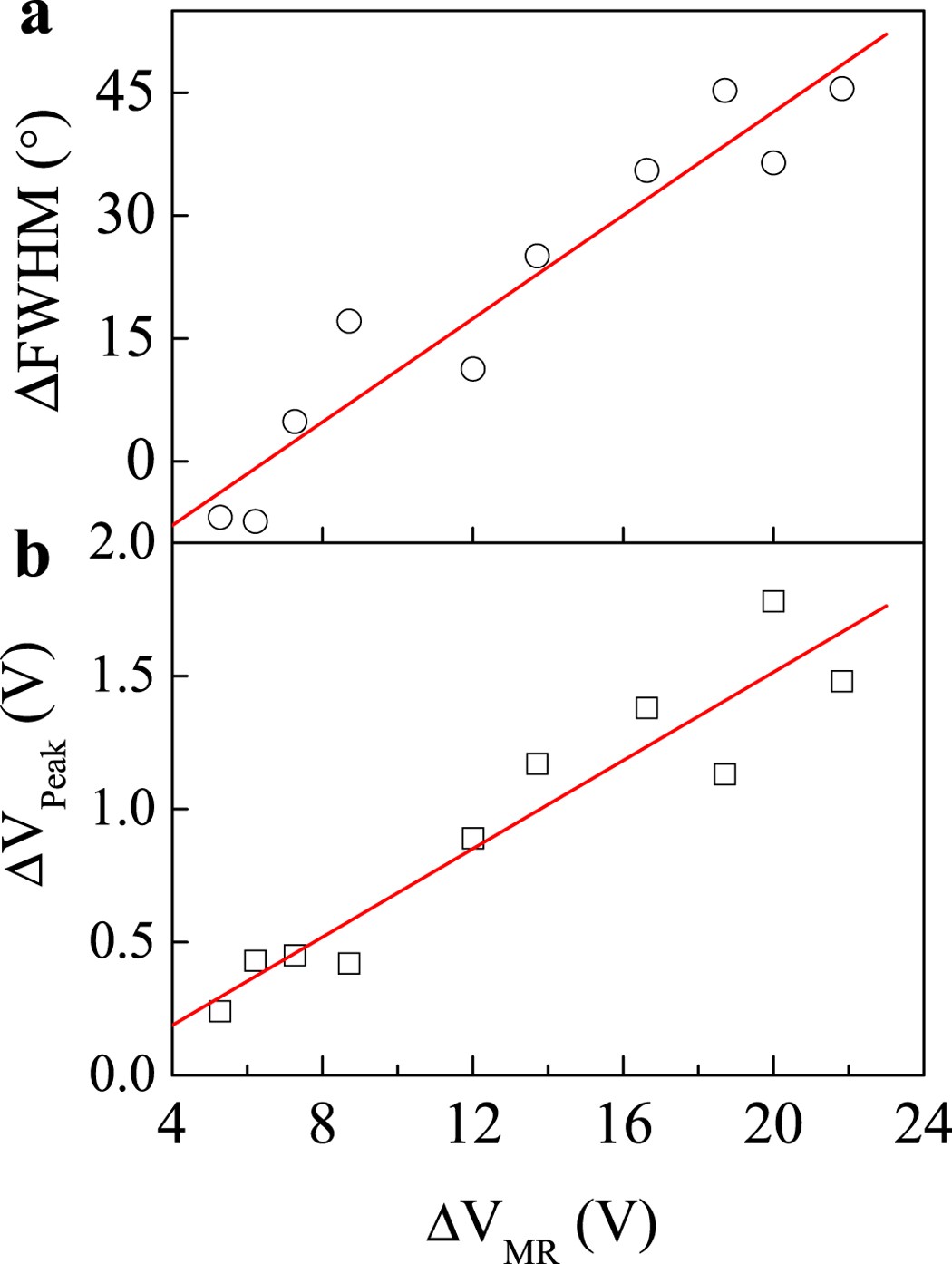

The linear relationship between the asymmtric features and the increment of MR voltage.
(a) The FWHM offsets for peak and valley increases linearly with the increment of MR voltage for H = 0 and 2 T. (b) The peak amplitude offsets for θ = 90 and 270° increases linearly with the increment of MR voltage for H = 0 and 2 T.
