Figure 3
From: Synthesis of diamond-like phase from graphite by ultrafast laser driven dynamical compression

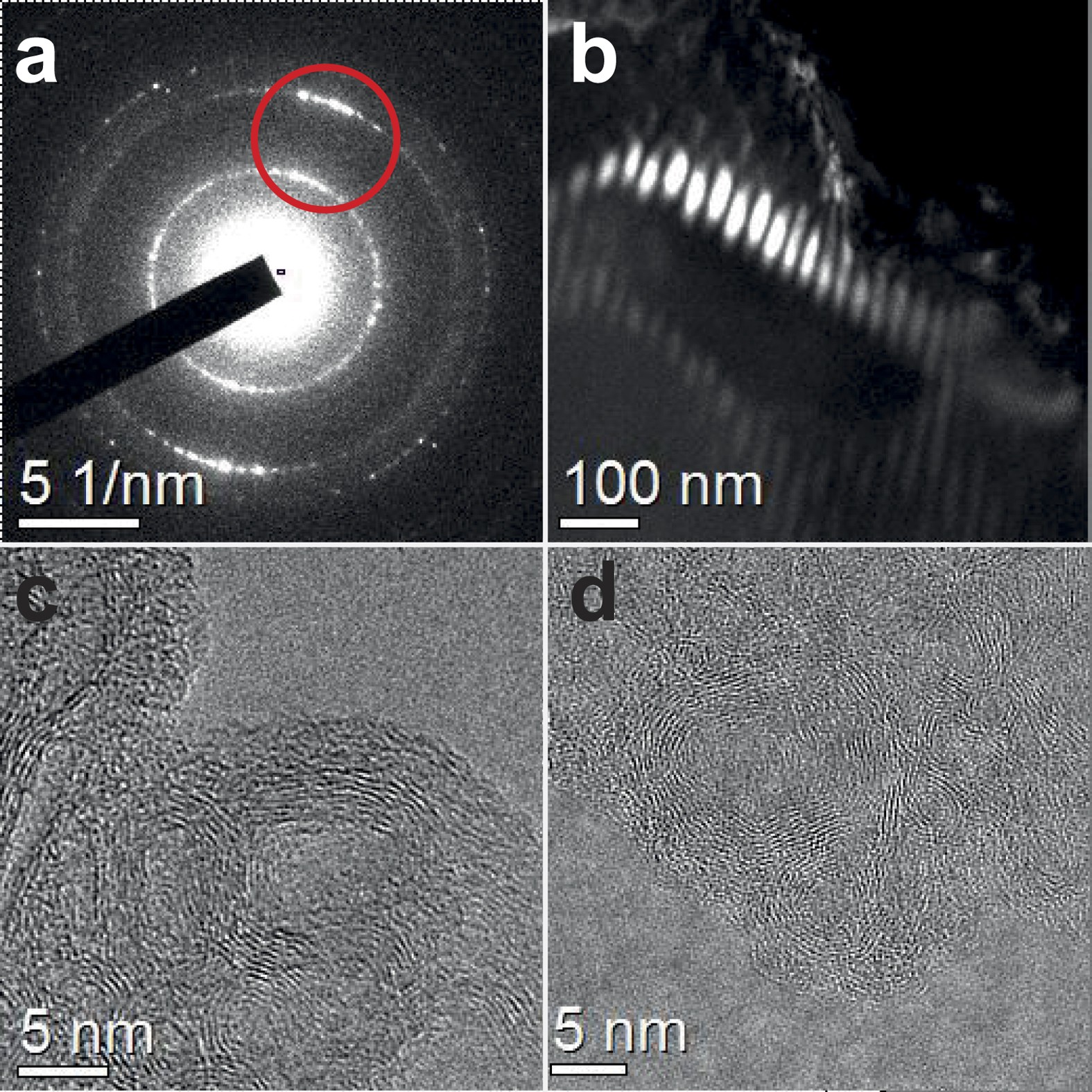

Texturized domains of the diamond-like phase and onions-like carbon coexisting at the laser created particle.
(a) SAD of the diamond-like phase from a small area on the region of the laser created structure displayed in (b). The highlighted red spot in the frame (a) represent the selected diffraction peaks for construction the patterned domains shown in (b). Onion-like phases also found at the laser created structure are presented in the frames (c) and (d).
