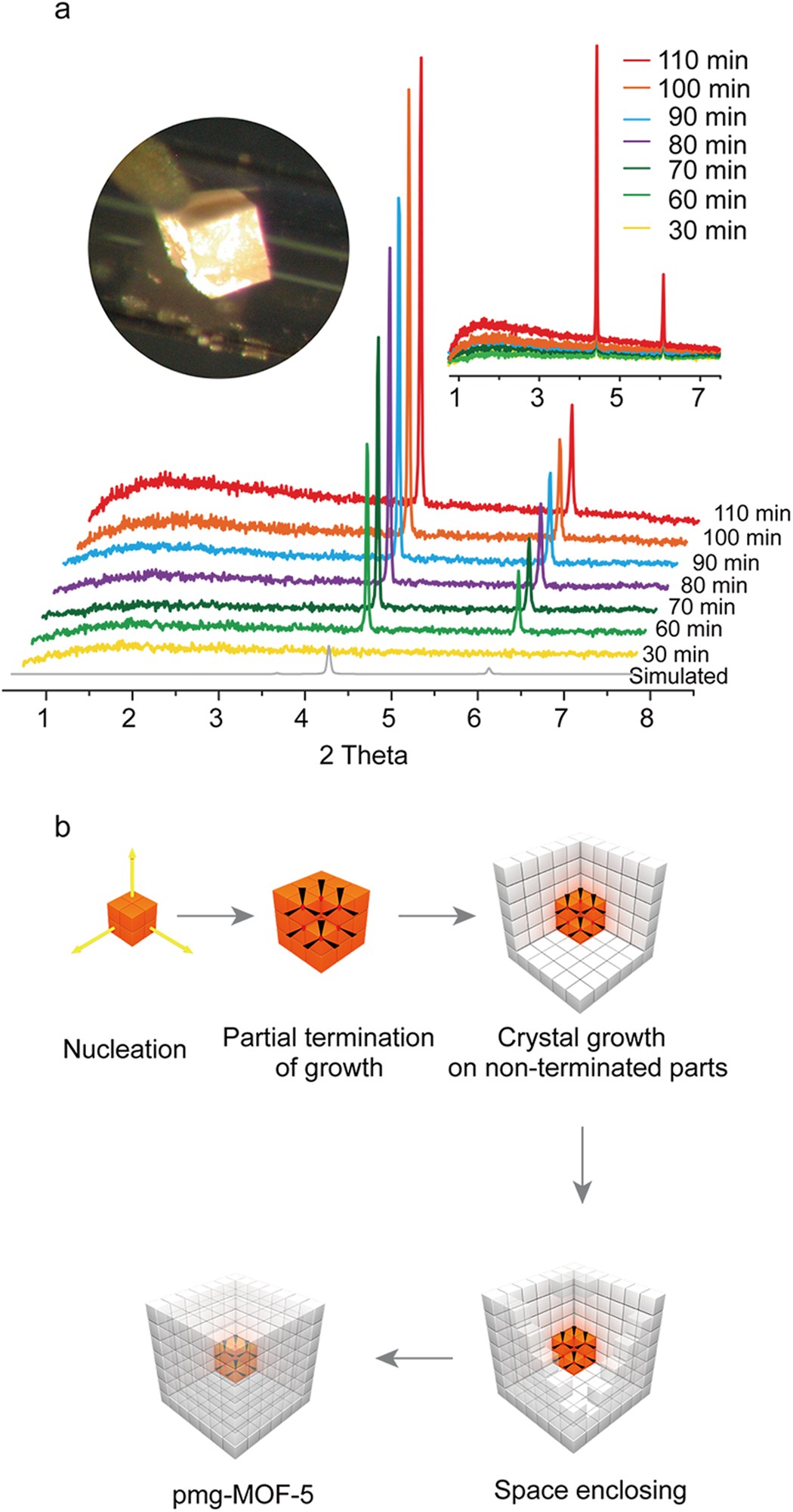

Figure 2
The revelation of growth mechanism for the pmg-MOF-5 using the in-situ X-ray measurement.
a, X-ray diffraction patterns during the time dependent crystal growth. b, The illustration for elucidating the growth mechanism of the pmg-MOF-5, where it contains meso/macropores enclosed by micropores.
