Figure 2

From: An anti-inflammatory role for C/EBPδ in human brain pericytes

Figure 2

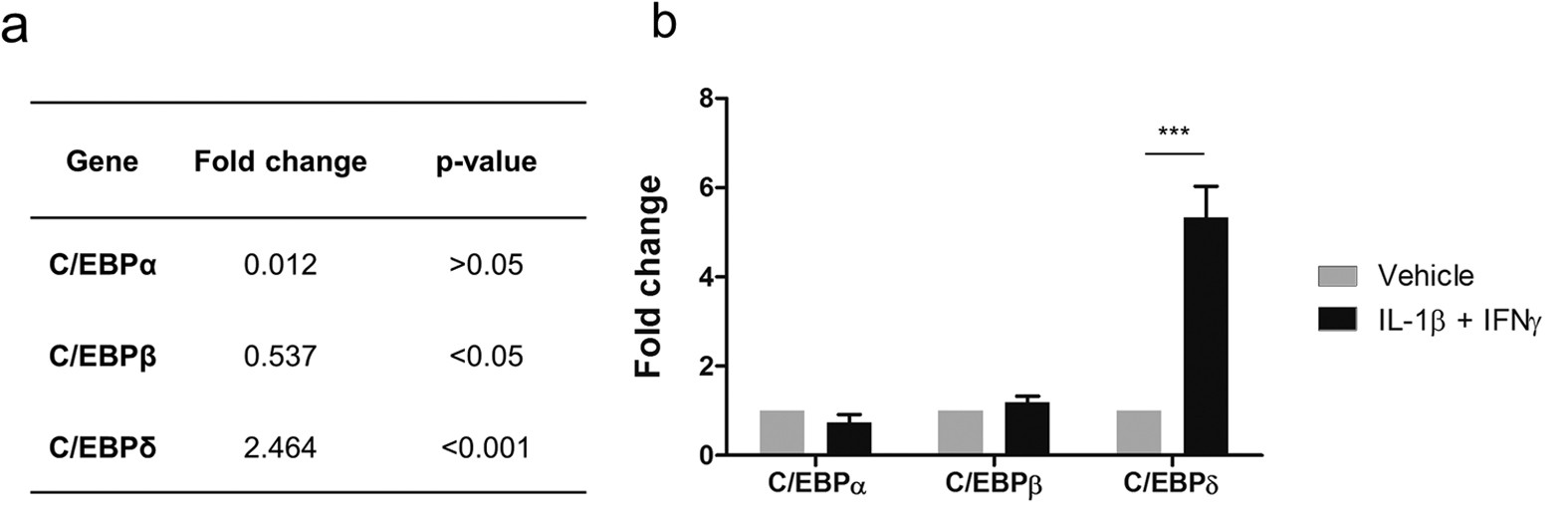

C/EBPδ is induced in human brain pericytes by IL-1β/IFNγ.

Human brain pericytes were treated with vehicle or 10 ng/mL IL-1β + IFNγ for 24 hours and RNA was extracted. Expression of C/EBPα, C/EBPβ and C/EBPδ was determined by microarray10 (a) and qRT-PCR (b). Data is displayed as average fold change of five independent cases (a) or mean ± SEM of a separate three independent cases (b). *** = p < 0.001.
