Figure 1

From: Positive regulation of the Shewanella oneidensis OmpS38, a major porin facilitating anaerobic respiration, by Crp and Fur

Figure 1

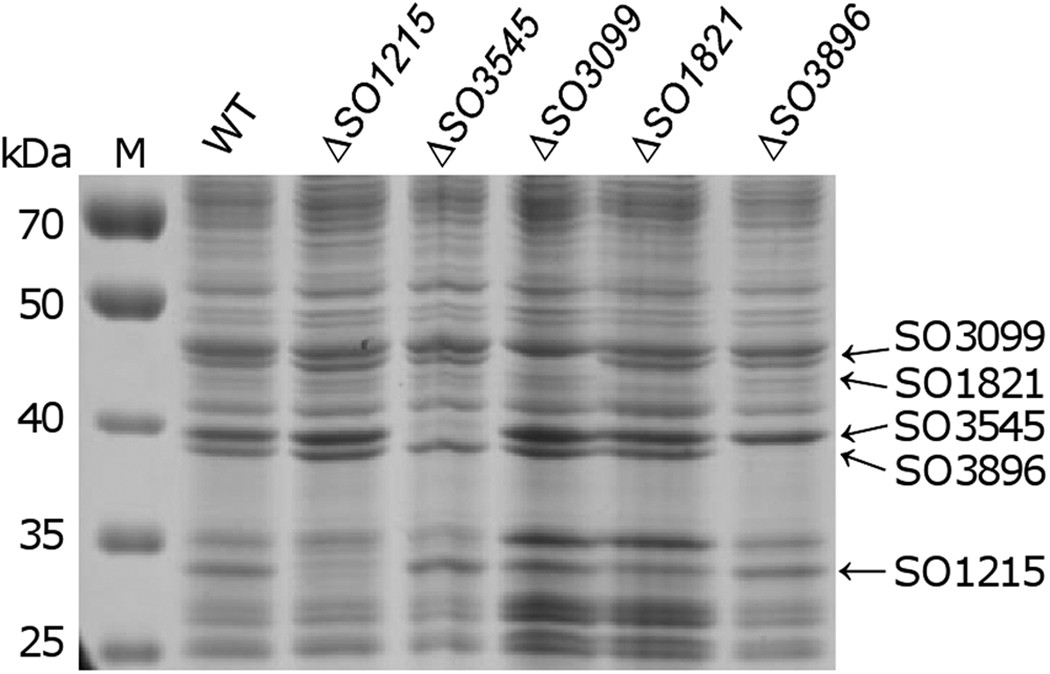

Major porins in the outer membrane (OM) in S. oneidensis.

WT represents the wild-type strain. Cells were grown overnight in LB and subcultured 1:200 in fresh medium. OM proteins were extracted and separated on SDS-PAGE. Bands indicated are β-barrel proteins identified by MS/MS analysis and validated by comparing to the corresponding mutant. Experiments were repeated at least three times and representative results were shown.
