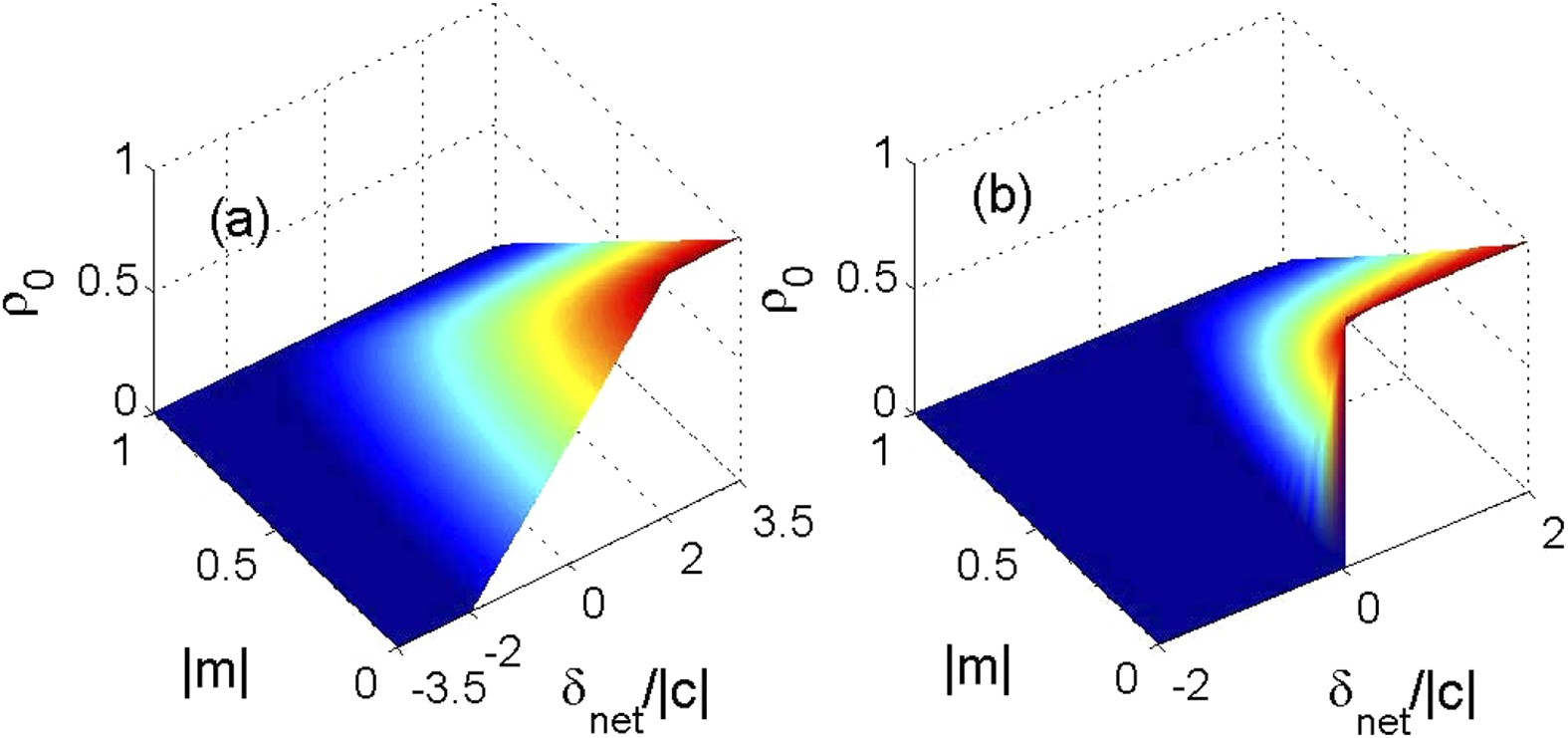

Figure 1
From: Phase diagram and spin mixing dynamics in spinor condensates with a microwave dressing field
The fractional population in the MF ground state.
The fractional population ρ0 for the ground state in the hyperfine state mF = 0 versus δnet and magnetization m for (a) ferromagnetic spinor (87Rb with c < 0) and (b) antiferromagnetic spinor condensates (23Na with c > 0).
