From: Current-limiting challenges for all-spin logic devices

Figure 1

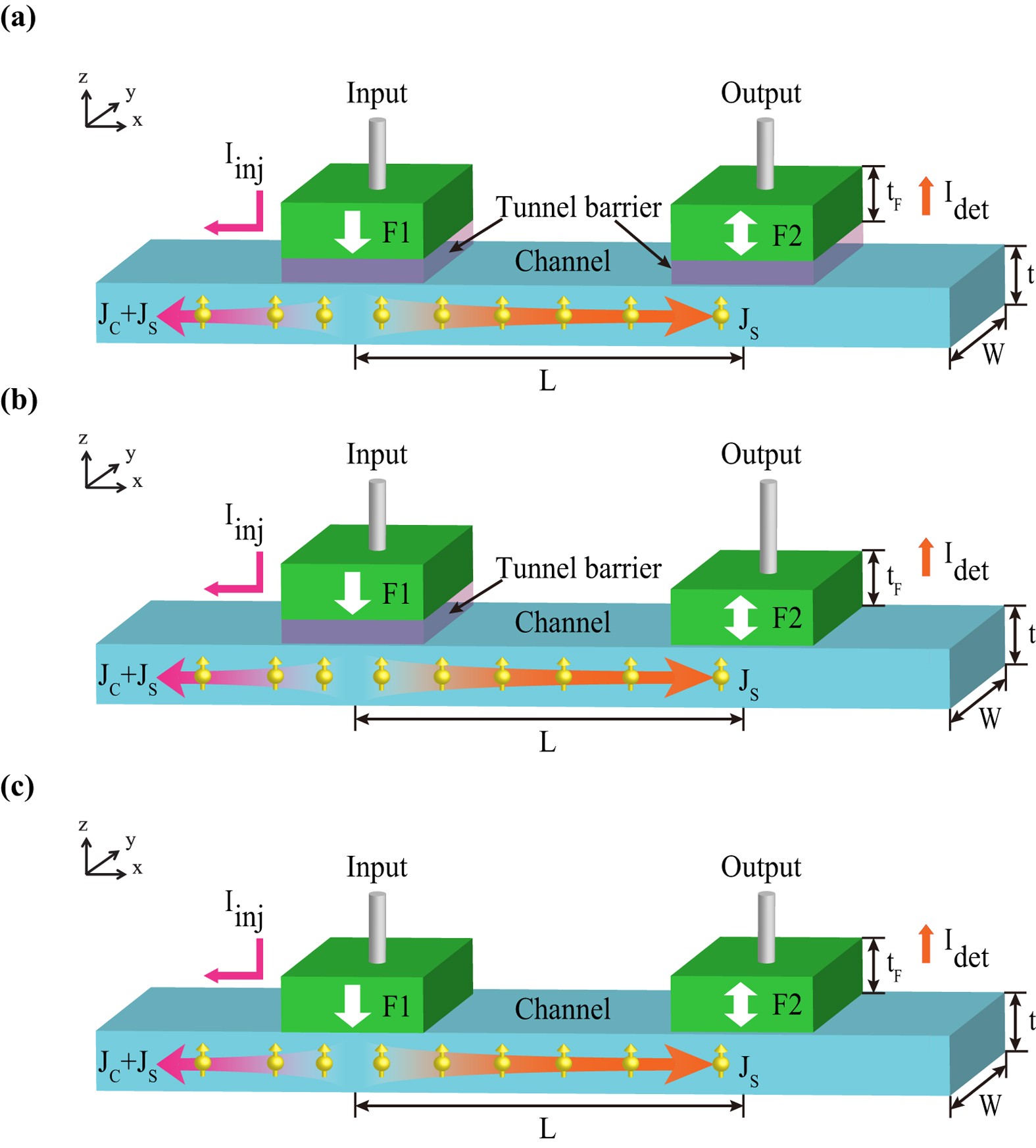

Main part of all-spin logic device (ASLD), i.e. structure of lateral nonlocal spin valve (LNLSV).

(a) Structure with tunnel barrier contact in both the input and output F1/T/C/T/F2. (b) Structure with tunnel barrier contact in the input and transparent contact in the output F1/T/C/F2. (c) Structure with transparent contact both in the input and output F1/C/F2. Js and Jc are spin current density and charge current density, respectively.
