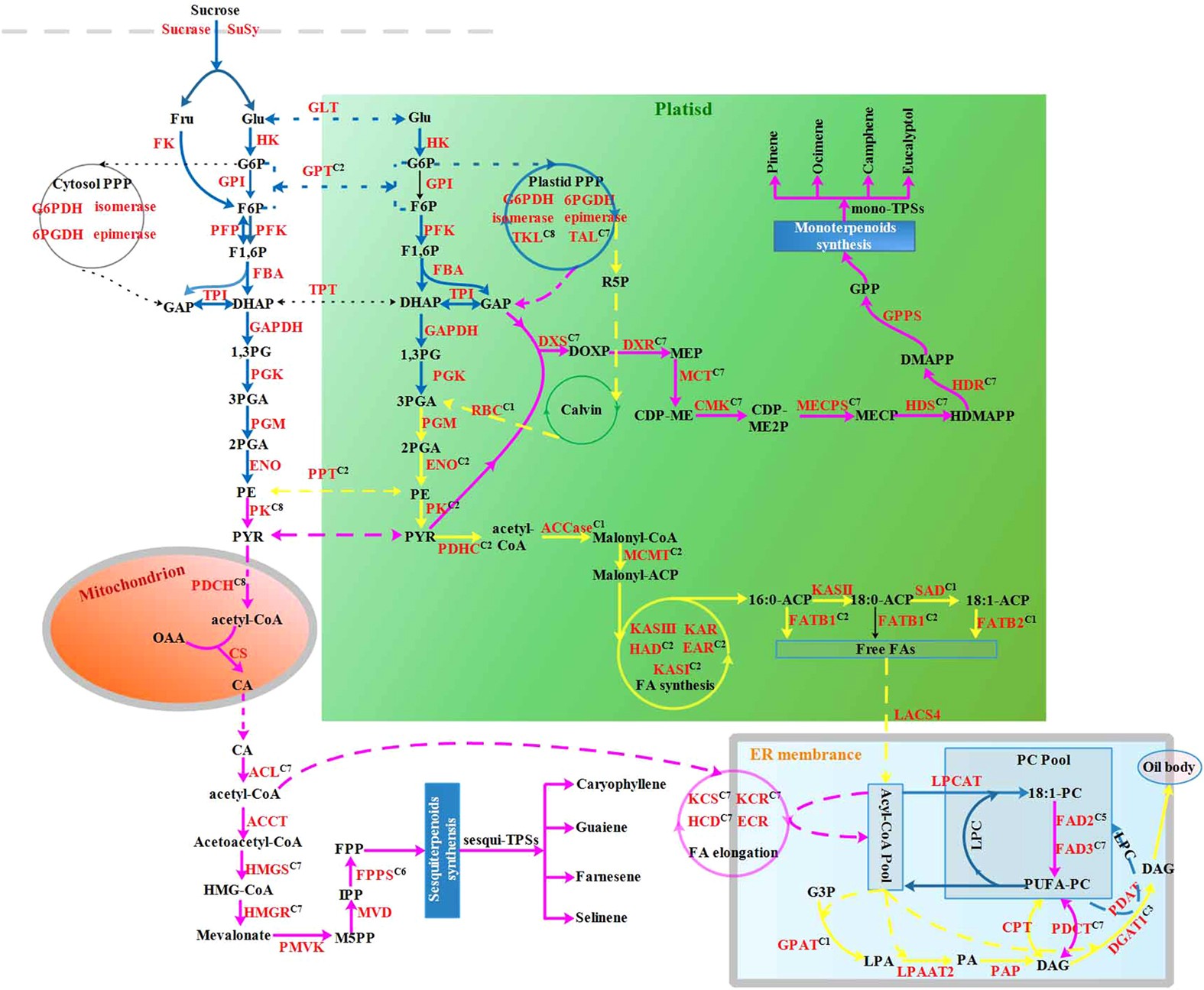

Compartmentalization of central carbon metabolism in developing LGF.

Pink arrows show the main flux in early development. Yellow arrows show the main flux in middle-late development. Blue arrows show the main flux in the whole development. The superscripts show the results of differential-expressed cluster.
