Figure 4

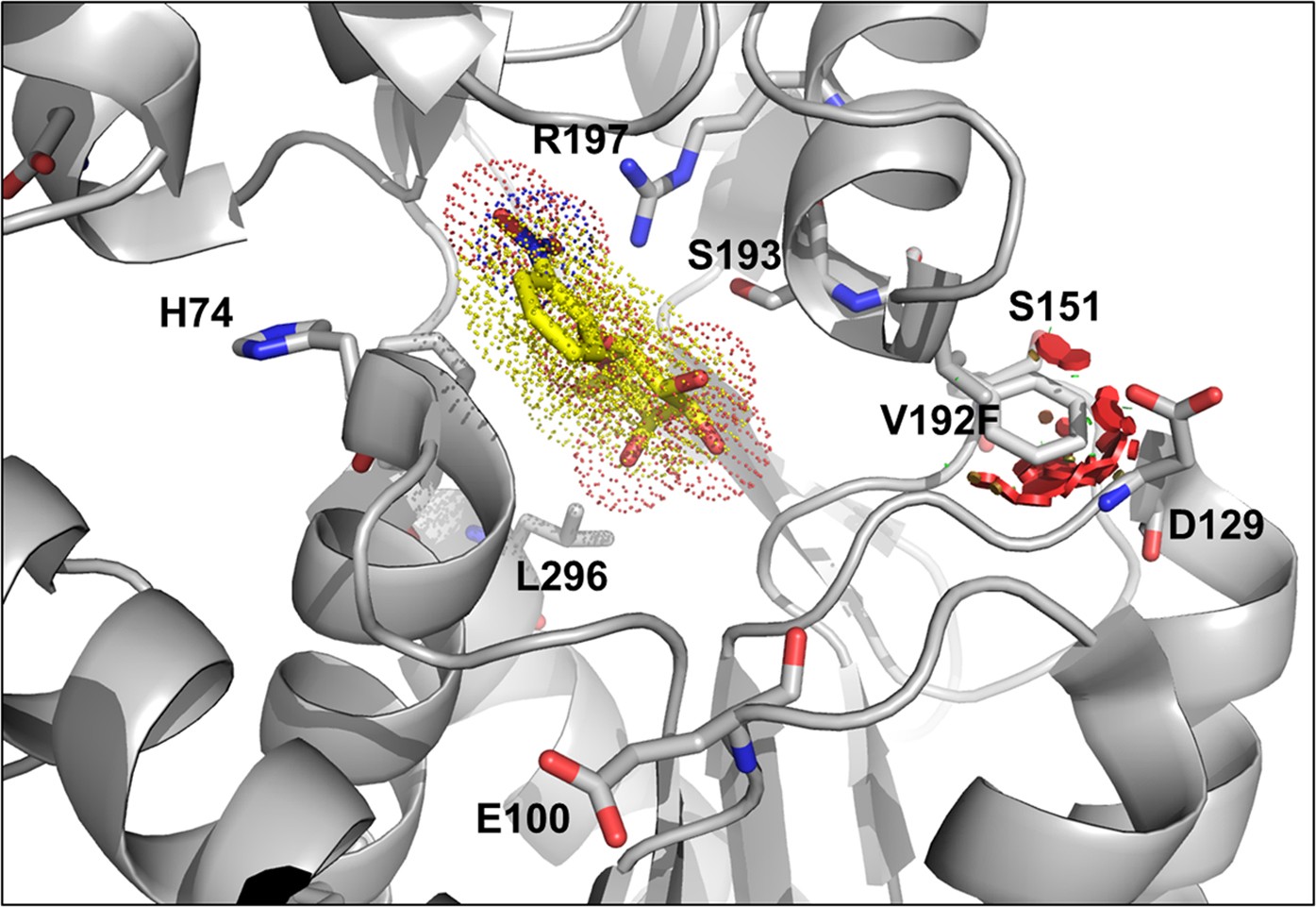

Structural analysis of the V192F mutation in the LacI protein.

The model shows the steric hindrance caused by V192F, which results in changes to the sugar- or IPTG-binding pocket. Steric clashes are depicted as red disks. The model was illustrated with PyMOL.
