Figure 2
From: Extreme lithium isotopic fractionation in three zircon standards (Plešovice, Qinghu and Temora)

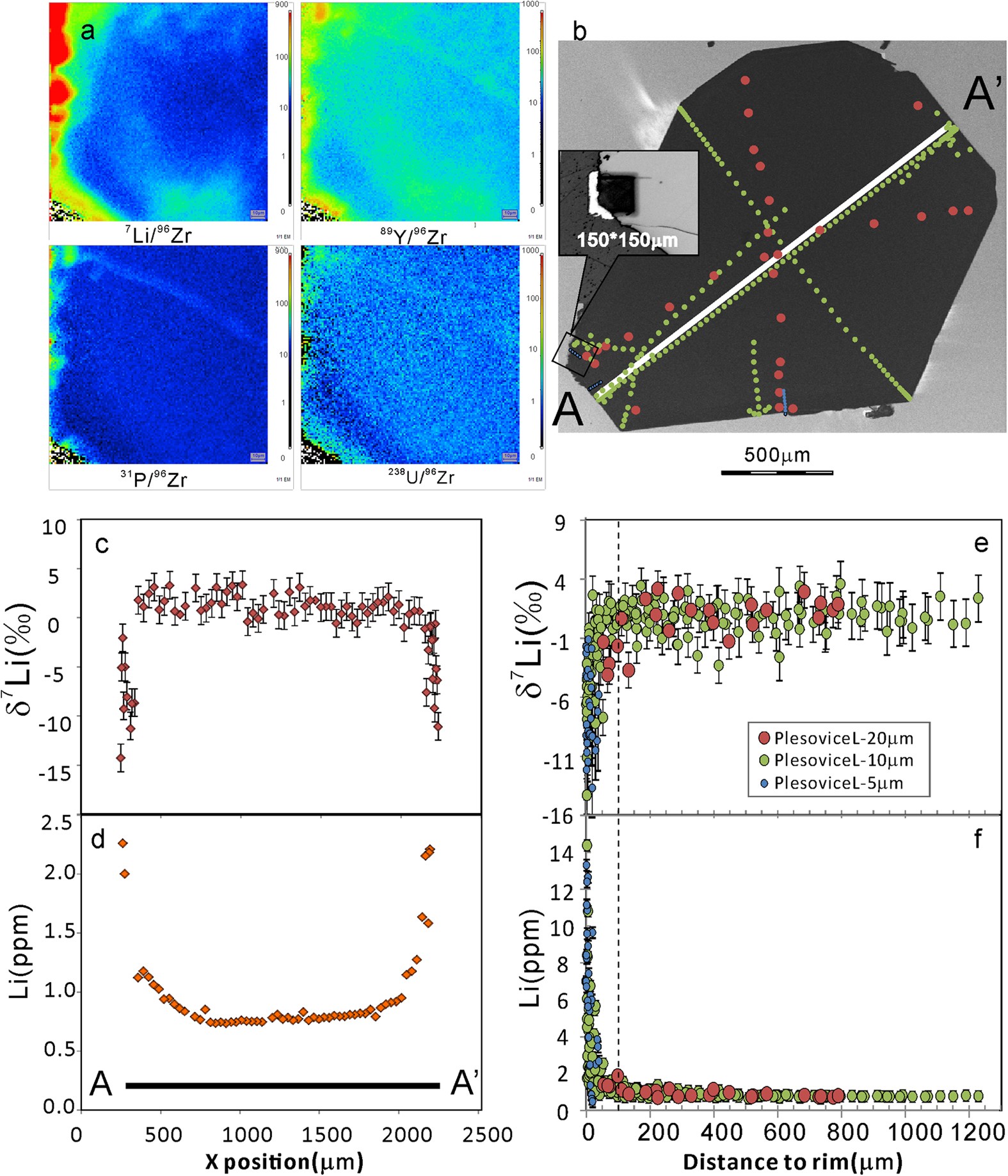

(a) Ion image of the variation of Li, Y, P and U content of Plešovice-L. (b) Trace outlines on the CL image to show the position of the Li isotopic and [Li] measurements. (c) δ7Li vs X position of AA’ profile. (d) [Li] vs X position of AA’ profile. (e) δ7Li vs relative distance to the rim. (f) [Li] vs relative distance to the rim.
