Figure 5
From: Extreme lithium isotopic fractionation in three zircon standards (Plešovice, Qinghu and Temora)

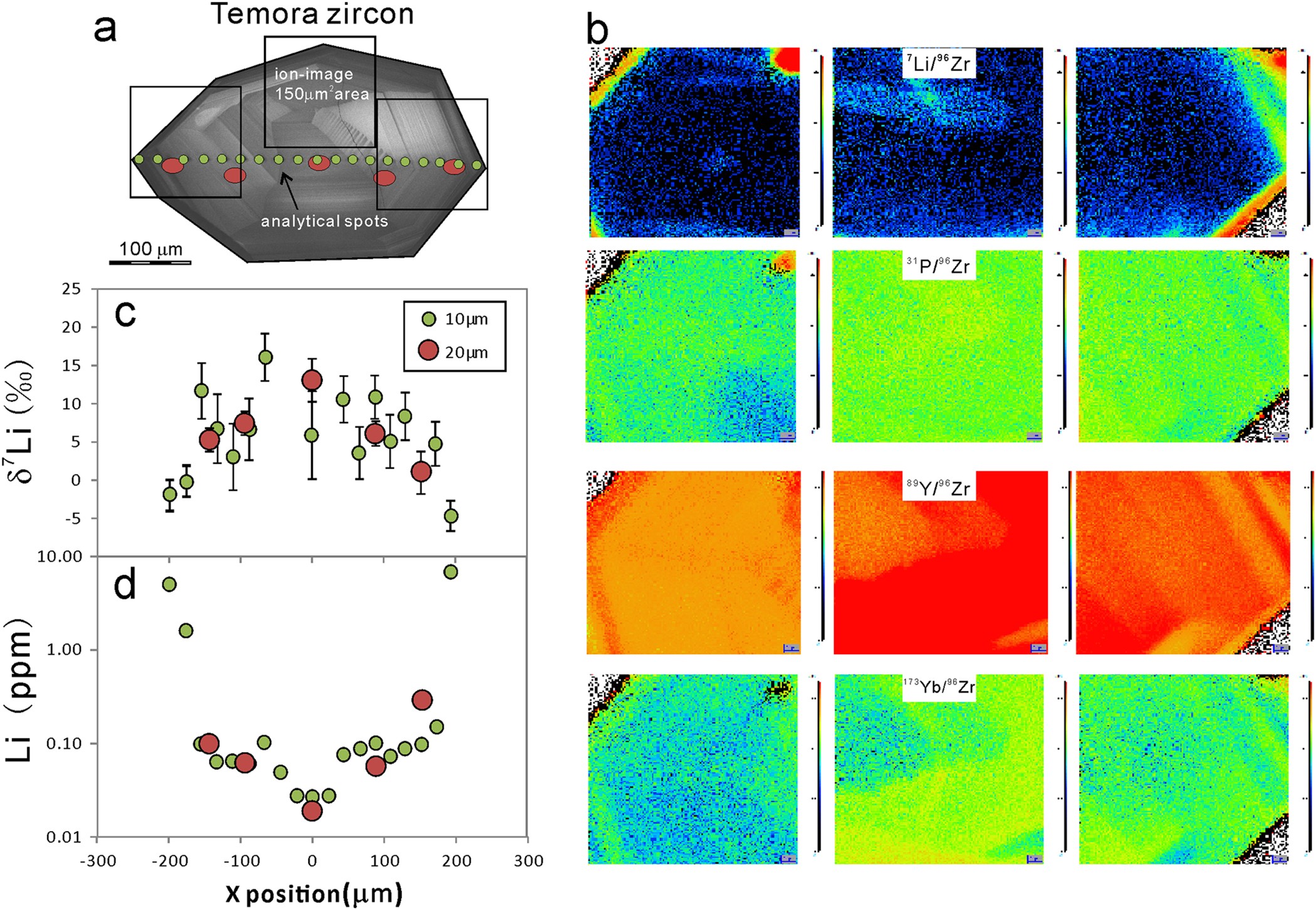

(a) The CL image and analytical spots of the Temora zircon. (b) ion image of Li, P, Y and Yb. (c) δ7Li profile through zircon. (d) [Li] profile through zircon.
