Figure 3
From: An efficient planar accordion-shaped micromixer: from biochemical mixing to biological application

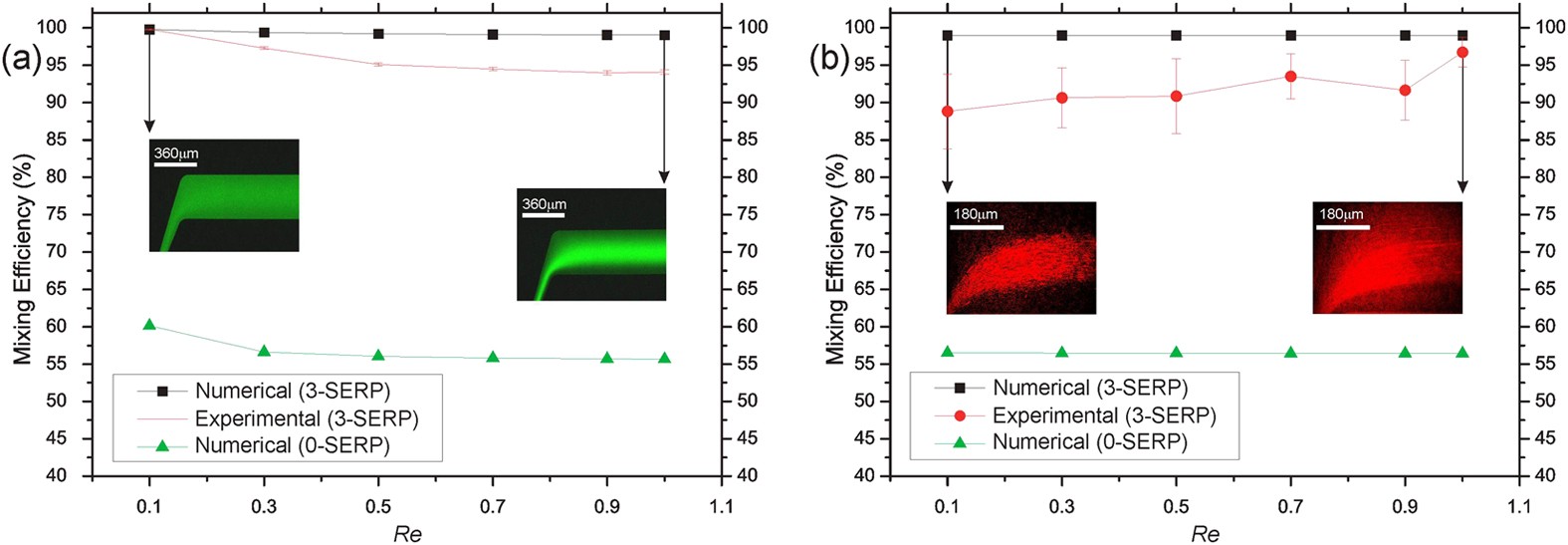

Mixing efficiency for BSA and PS.
Variation of M as a function of Re for: (a) BSA and (b) PS; Numerical expectations for 0-SERP (green triangles) and 3-SERP (black squares) and experimental dependency for 3-SERP ((a) red error bars; (b) red circles with error bars).
