Figure 5
From: Random walk hierarchy measure: What is more hierarchical, a chain, a tree or a star?

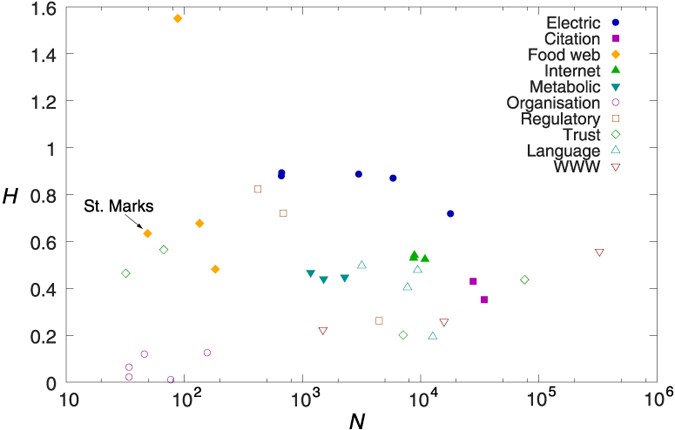

Random walk hierarchy of different real networks.
Each symbol is corresponding to a different network, where the shape and colour of the symbols is encoding the type of the system. The horizontal coordinate of the symbols is corresponding to the size of the corresponding network, while the vertical coordinate is giving H.
