Figure 5
From: Novel kinase fusion transcripts found in endometrial cancer

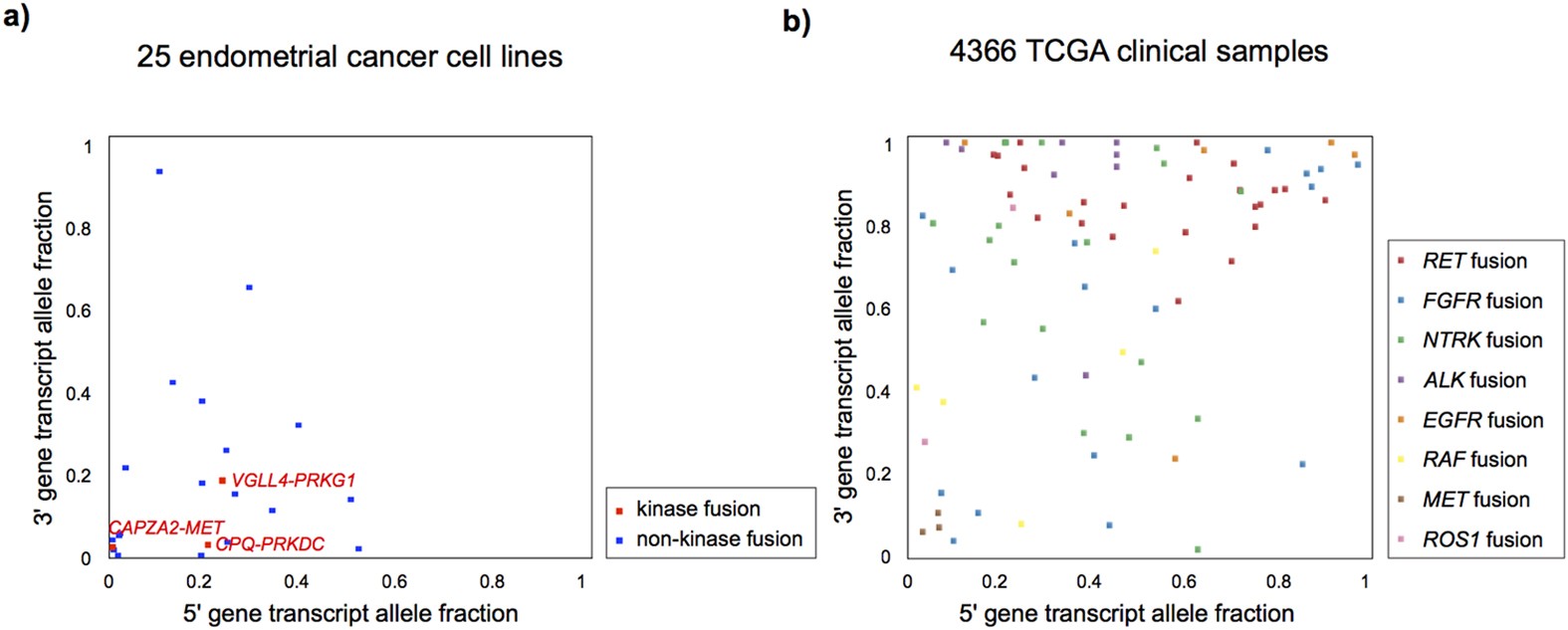

Comparison of transcript allele fraction (TAF) between endometrial cancer cell lines and TCGA clinical samples.
(a) TAF value for each fusion transcript in endometrial cancer cell lines. Each plot represents the TAF of fusion transcripts that were supported by more than 10 junction-spanning reads. X- and y-axes represent TAF of 5′ and 3′ genes. Blue plots and gray squares represent in-frame and out-of-frame fusion transcripts, respectively. The three in-frame kinase fusion transcripts are highlighted in red. (b) TAF for 82 recurrent in-frame kinase fusion transcripts in TCGA clinical samples that were supported by more than 10 junction-spanning reads and that retained the kinase domain.
